Zenith LED Flood

Submit an enquiry

FEATURES

Performance and longevity, this outdoor light features a robust body made from 12# die-cast aluminum with a protective powder-coated finish, ensuring excellent resistance to corrosion and wear. The fixture includes a sturdy ABS mounting spike available in grey or black, and a matching die-cast aluminum base for secure installation. A SUS316 stainless steel mounting strap offers superior strength and rust resistance, ideal for harsh outdoor environments. The tempered glass cover enhances durability while providing clear, consistent light output, making this fixture a reliable choice for any exterior lighting application.

ZENITH

Submit an enquiry
Description:
HOUSING
Body in Aluminum Die-cast
DIFFUSER
PC+4mm Thickness Tempered Glass
COLOR AVAILABLE Dark Grey & Black
LIFESPAN
 > 100,000 Hours (L70 B20)
REFLECTOR Aluminum Reflector
VOLTAGE AC100~240V
WORKING TEMPERATURE -20C° ~ +55C°
UGR <22
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
AISA 316 Stainless Steel Screw
Technical Specifications:

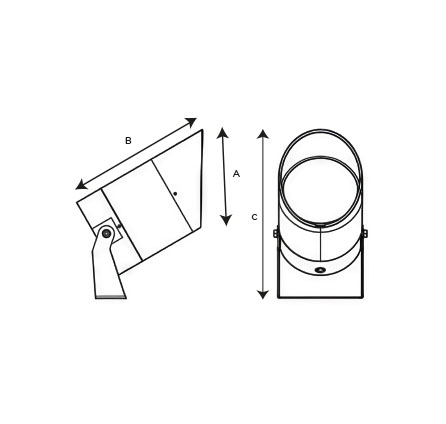

Item Code PowerLamp CCTLumen DIMENSIONS
FXR31462.5
 2.5W LED 3000K, 4000K, 6000K 300 lm A33 X B68 X C85 mm
FXR314604
 04W LED 3000K, 4000K, 6000K 480 lm A43 X B89 X C108 mm
FXR314606
 06W LED 3000K, 4000K, 6000K 720 lm A55 X B101 X C127 mm
FXR314610
 10W LED 3000K, 4000K, 6000K 1200 lm A69 X B117 X C150 mm
FXR314615
 15W LED 3000K, 4000K, 6000K 1800 lm A85 X B138 X C175 mm
FXR314623
 23W LED 3000K, 4000K, 6000K 2760 lm A105 X B180 X C215 mm
