Zak LED Down Light

Submit an enquiry

FEATURES

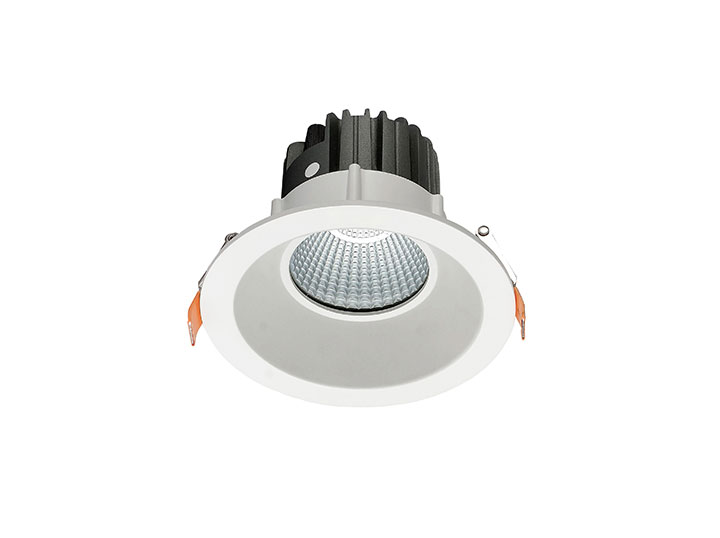

Zak LED Down Light Attractive exclusive downlight for indoor or outdoor use, particularly well-suited to basic lighting due to its very low unified glare rating. Well integrated LED chip and associated dimmable driver. Made of die-cast powder-coated aluminum, glass diffuser. with a three different beam angle. Low recessed downlight with hole size.

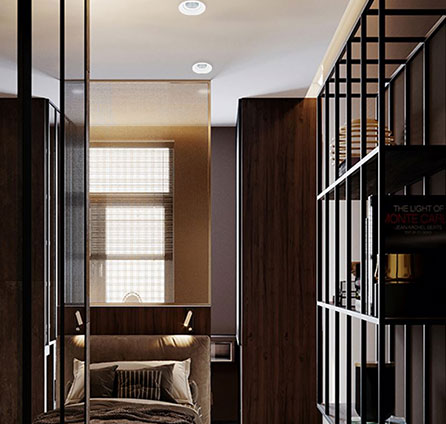

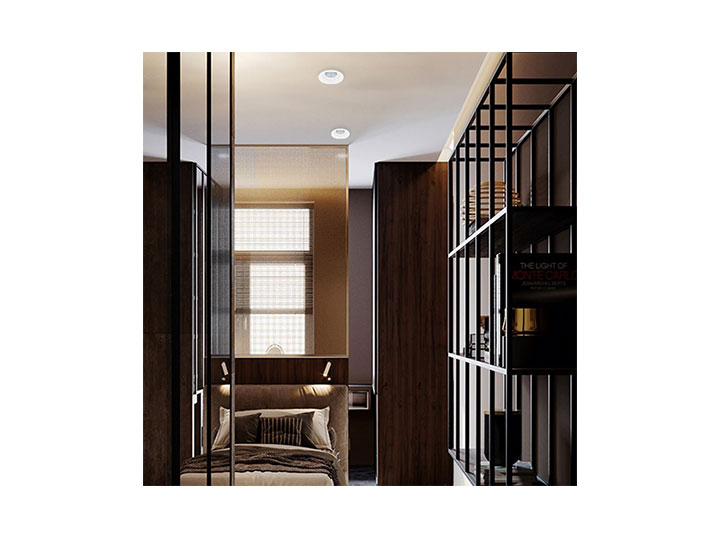

This unique design skillfully prevents the human eyes contact with the light sources directly, makes the light more soft. Meanwhile the light efficiency reaches to 120lm/w with perfect accent lighting performance. That makes it become the priority selected product for commercial lighting. Great cooling fins heat sink design increases the interface between heat sink and air, which makes the heat dissipating performance outstanding and extend the service life of the downlight. Suitable for commercial and residential applications like office, supermarket, shop, school, hotel, restaurant, workshop, warehouse, home etc.

ZAK

Submit an enquiry
Description:
HOUSING Luminaire Body Die-cast Aluminum, White Powder-coated & Heat Sink Form a Compact Unit
DIFFUSER Clear Tempered Glass
COLOR AVAILABLE White
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE
 -40C° ~ +50C°
UGR <19
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

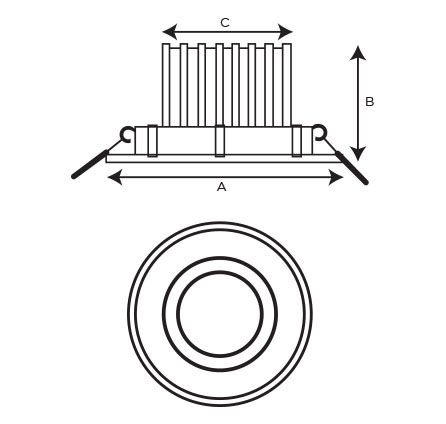

Item Code PowerLamp CCTLumen Dimensions
DXR179707 07W LED 3000K, 4000K, 6000K 840lm
 A100 X B85 X C80 mm
DXR179710 10W LED 3000K, 4000K, 6000K 1200lm A130 X B95 X C120 mm
DXR179715 15W LED 3000K, 4000K, 6000K 1800lm
 A160 X B100 X C150 mm
DXR179720 20W LED 3000K, 4000K, 6000K 2400lm A160 X B100 X C150 mm
DXR179725 25W LED 3000K, 4000K, 6000K 3000lm A190 X B110 X C180 mm
