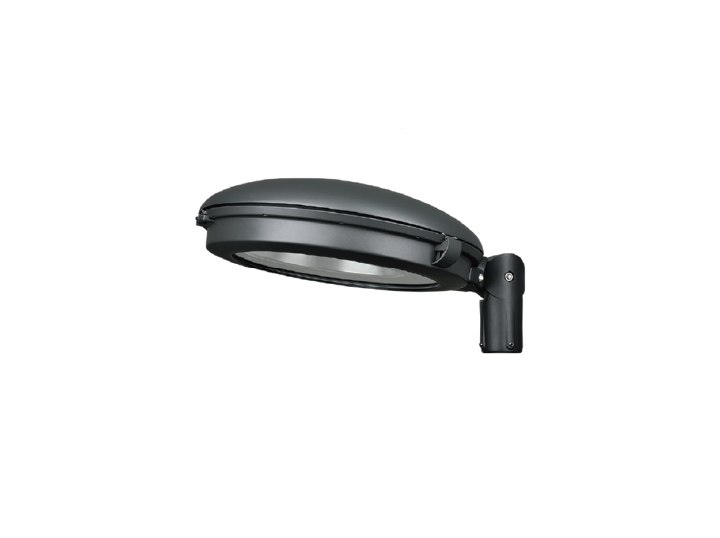

Wafel Street Light

Submit an enquiry

FEATURES

The primary appeal of LED street lighting is energy efficiency compared to conventional street lighting fixture technologies such as high-pressure sodium (HPS) and metal halide (MH). Environmentally friendly alternative to traditional lightning. Resistant to ambient temperatures up to 20°C to +55°C.High Power LEDs. Can be mounted on a pole with 60- or 90-mm diameter. The finish is accessible in the RAL colors requested by client.

WAFEL

Submit an enquiry
Description:
HOUSING Die-cast Aluminum Body
DIFFUSER Tempered clear glass.
COLOR AVAILABLE Black, Grey
LED CHIP 100,000 Hours (L90 B50)
REFLECTOR Aluminum Reflector
VOLTAGE AC100-240V
WORKING TEMPERATURE -40C° ~ +55C°
UGR < 22
Luminous Efficacy (lm/W) 140
MacAdam <3
Weight 14.3Kg
Technical Specifications:

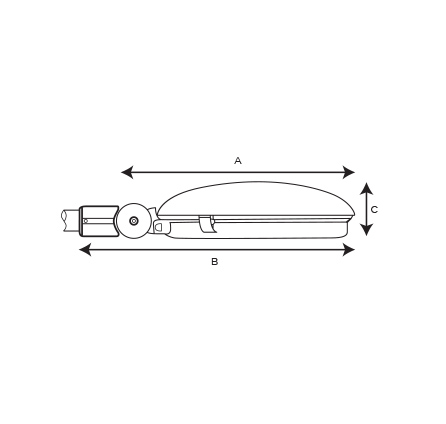

Item Code PowerLamp CCTLumen DIMENSIONS
STXR315040 40W LED 3000K, 4000K, 6000K 5600lm A530 X B733 X C158 mm
STXR315050 50W LED 3000K, 4000K, 6000K 7000lm A530 X B733 X C158 mm
STXR315060 60W LED 3000K, 4000K, 6000K 8400lm A530 X B733 X C158 mm
STXR315070 70W LED 3000K, 4000K, 6000K 9800lm A530 X B733 X C158 mm
STXR315080 80W LED 3000K, 4000K, 6000K 11200lm A530 X B733 X C158 mm
STXR315090 90W LED 3000K, 4000K, 6000K 12600lm A530 X B733 X C158 mm
STXR3150100 100W LED 3000K, 4000K, 6000K 14000lm A530 X B733 X C158 mm
