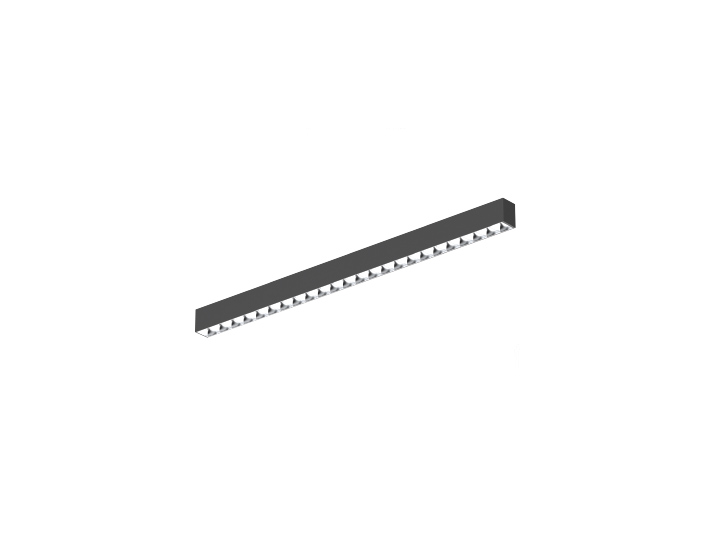

Trellis Linear Light


Trellis linear fixture is a seamless splicing design with straight/corner/cross splicing connector, it can realize a very convenient connection with male and female plug. It adopts high lumen SMD light source, PC grill reflector with anti-glare UGR<19 effect, flicker free and high efficiency driver make a better lumen output. Aluminum housing provides excellent thermal management. Functions: Down lighting, up & down lighting, adjustable CCT, 1-10V, DALI dim. Mounting design: Pendant/surface mounted/wall mounted/recessed/Track/ Splicing. Modular design: Replaceable driver.

HOUSING High Pure Extruded Aluminum, Anodized
Polycarbonate/PMMA Opal Diffuser Specially for LED
COLOR AVAILABLE White, Black, Silver (other color available upon request)
LIFESPAN>50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR Aluminum Reflector
UGR < 19
Luminous Efficacy (lm/W) 120
MacAdam <3
Accessories Surface Mounted, Suspended, Recessed
Technical Specifications:

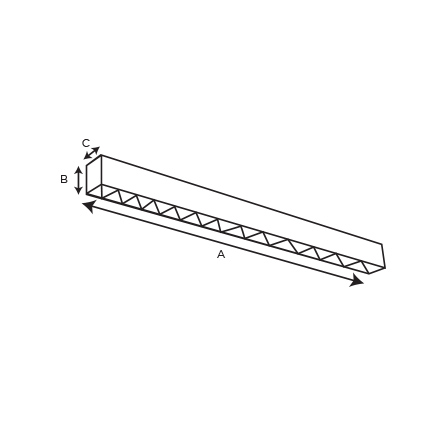

Item Code PowerLamp CCTLumen DIMENSIONS
PDXR3517 17W LED 3000K, 4000K, 6000K 2040lm A602 X B76 X C57 mm
PDXR3522 22W LED 3000K, 4000K, 6000K 2640lm A602 X B76 X C57 mm
PDXR3535 35W LED 3000K, 4000K, 6000K 4200lm A1212 X B76 X C57 mm
PDXR3545 45W LED 3000K, 4000K, 6000K 5400lm A1212 X B76 X C57 mm
PDXR3554 54W LED 3000K, 4000K, 6000K 6480lm A1512 X B76 X C57 mm
PDXR3570 70W LED 3000K, 4000K, 6000K 8400lm A2412 X B76 X C57 mm
