FEATURES

Constructed of durable and attractive aluminum, this fitting is more stylish than others. The system is a great design and adds great appeal to a space, dramatically improving the light levels. It adopts high lumen light source with different module DIY options, up down lighting distribution design. Besides, for installation, the pluggable and magnetic seamless splicing design make it a quick install. AL6063 aluminum provides a great thermal management. It is designed for general lighting applications in office, supermarket, shopping mall, restaurant, hotel, etc. (other colors available on request)

TETON III

Submit an enquiry
Description:
HOUSING High Pure Extruded Aluminum, Anodized
DIFFUSER

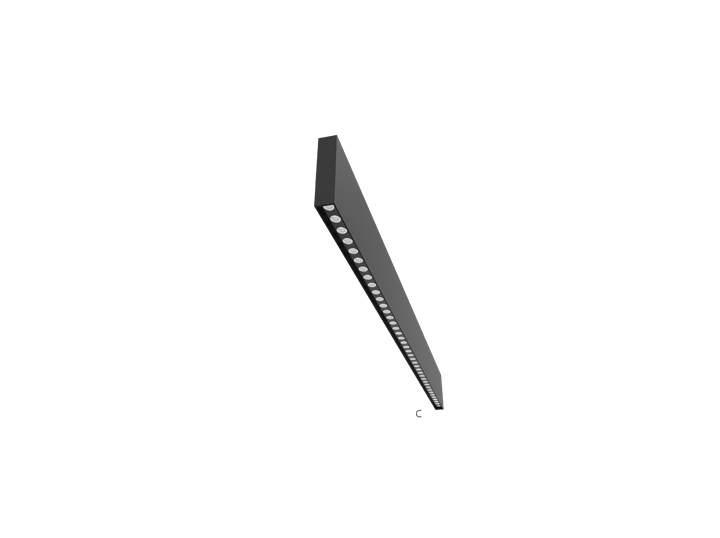

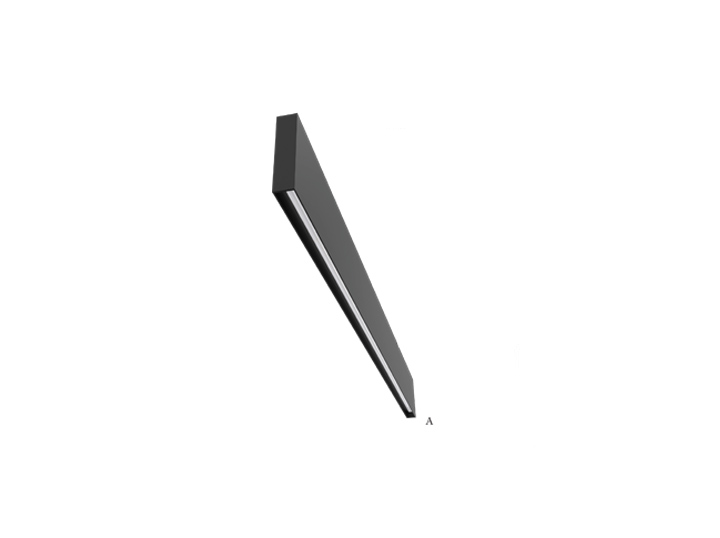

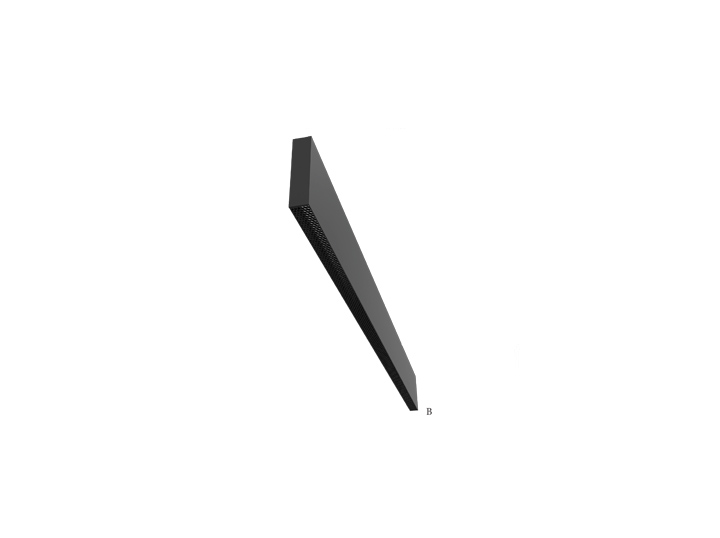

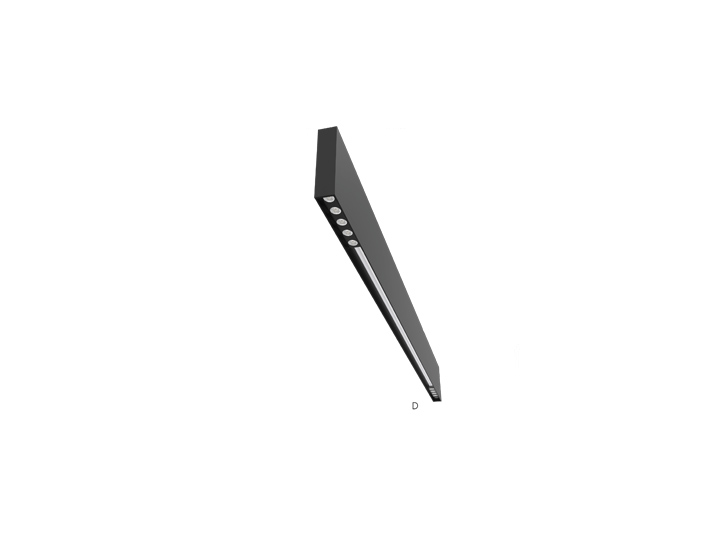

PMMA Opal Diffuser/Honeycomb Grid/Lenses/PMMA+Lenses
COLOR AVAILABLE White, Black, Silver (other color available upon request)
LIFESPAN >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR Aluminum Reflector
VOLTAGE AC200-240V
WORKING TEMPERATURE -40C° ~ +50C°
UGR < 22
Luminous Efficacy (lm/W) 125
MacAdam <3
Accessories Surface Mounted, Suspended, Recessed
Technical Specifications:

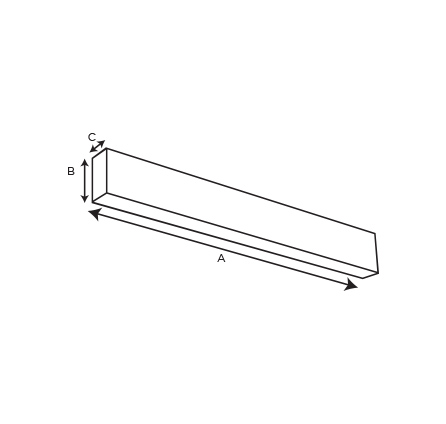

Item Code PowerLamp CCTLumen DIMENSIONS
PDXR2718-WH 18W LED 3000K, 4000K, 6000K 2250lm A605 X B105 X C34 mm
PDXR2725-WH 25W LED 3000K, 4000K, 6000K 3125lm A905 X B105 X C34 mm
PDXR2740-WH 40W LED 3000K, 4000K, 6000K 5000lm A1205 X B105 X C34 mm
PDXR2750-WH 50W LED 3000K, 4000K, 6000K 6250lm A1505 X B105 X C34 mm
PDXR5020-DW 20W LED 3000K, 4000K, 6000K 2500lm A1205 X B105 X C34 mm
PDXR5030-DW 30W LED 3000K, 4000K, 6000K 3750lm A1205 X B105 X C34 mm
PDXR5030-DUW 30+8W LED 3000K, 4000K, 6000K 4750lm A1205 X B105 X C34 mm
PDXR5040-DW 40W LED 3000K, 4000K, 6000K 5000lm A1505 X B105 X C34 mm
PDXR5040-DUW 40+10W LED 3000K, 4000K, 6000K 6250lm A1505 X B105 X C34 mm
PDXR5060-DW 60W LED 3000K, 4000K, 6000K 7500lm A2010 X B105 X C34 mm
