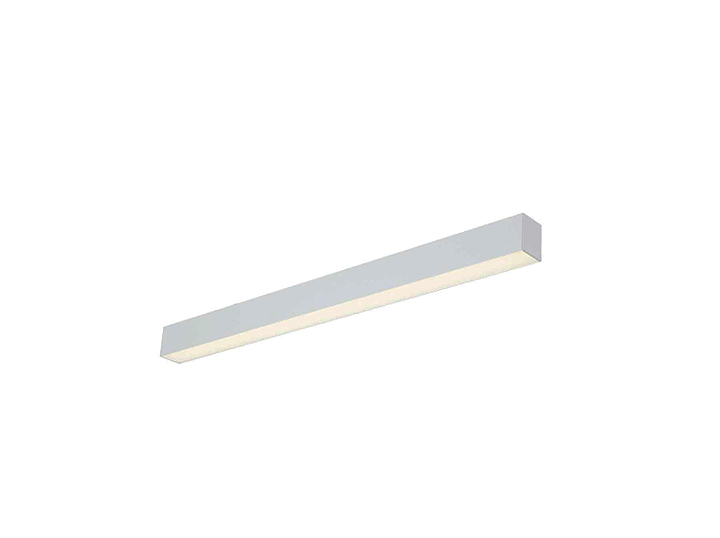

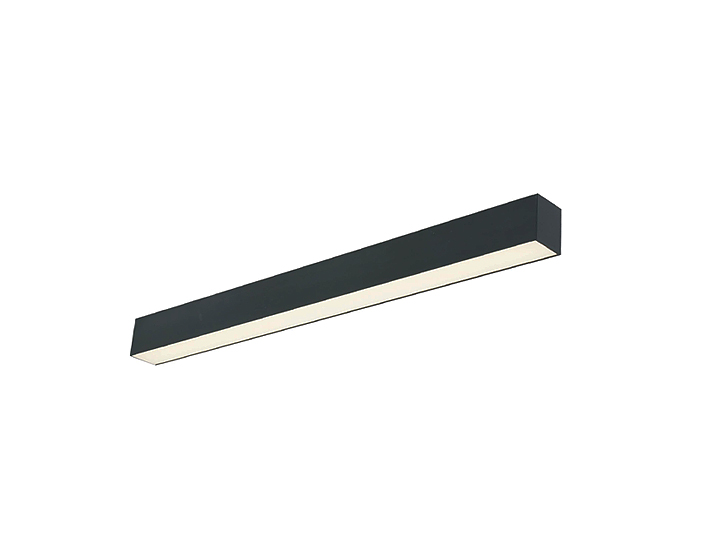

TETON

FEATURES

  • Non-flicker available
  • Up to 125Lm/W
  • UGR<19
  • IP54
  • Up to 80% energy saving
  • Wide use in commercial and industrial area
  • Fast fit and zero maintenance
  • 50,000h , 5 years warranty
Description:
HOUSING High pure Extruded aluminum, anodized or silver powder coated (other colors available on request).
DIFFUSER PC/PMMA Opal diffuser specially for LED.

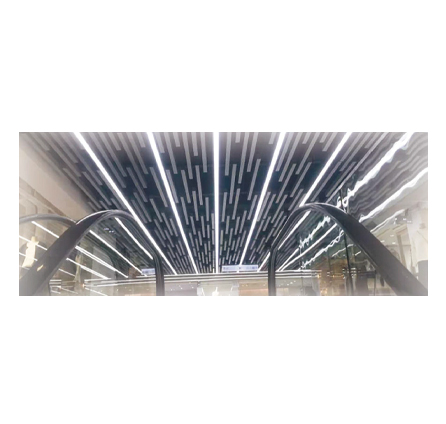

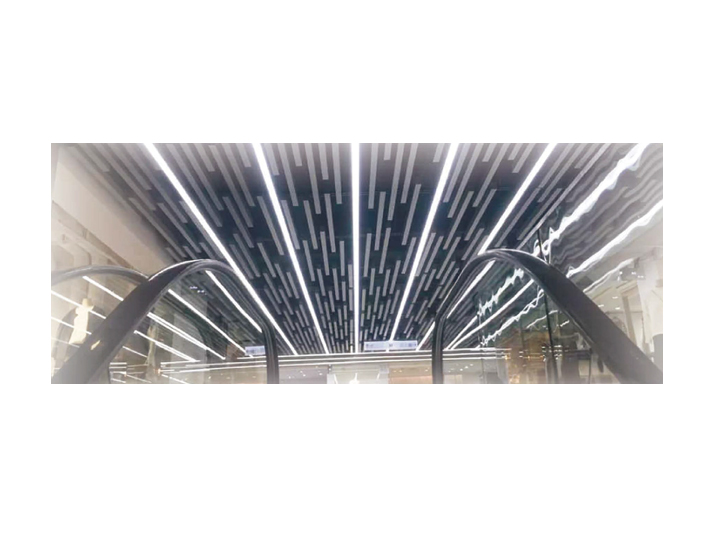

MOUNTING Suspension, ceiling mounted, wall mounted & available for shadow free continuous lighting system.
LED  Reducing energy consumption with L80/B10/F10 50,000 hrs
LIFETIME working under temp(-20°C To 65°C)
CCT 3000K 4000K 6000K

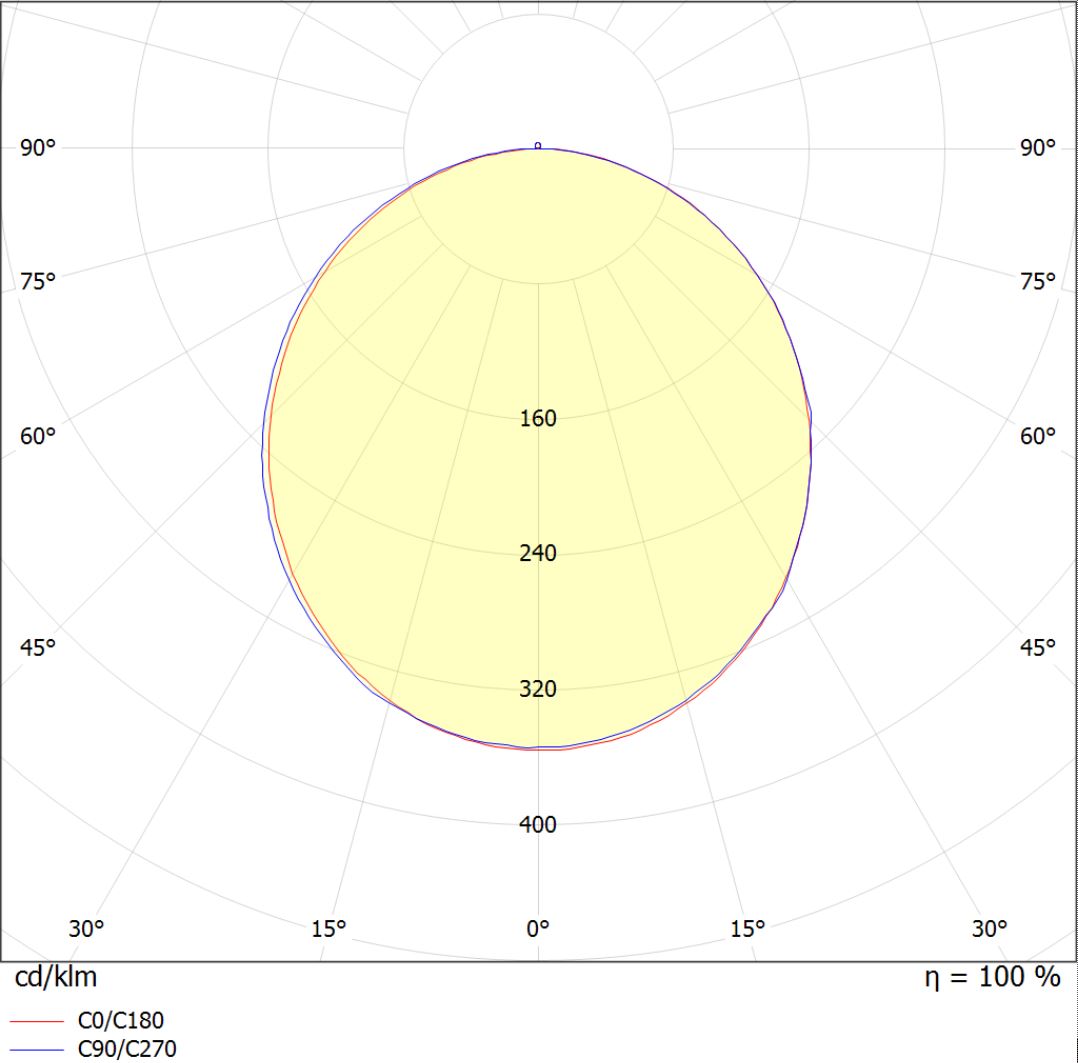

BEAM ANGLE 100°/120°
LIGHT EFFICIENCY 125 Lm/W
INSTALLATION METHOD Embedded/Suspension/Surface mounted
WORKING TEMPERATURE -30-+65"C
VOLTAGE AC200-240V
Technical Specifications:
Item Code WattLumen Im/W Dimensions
PDXR2530-WH 30W 3750lm 125 1100 x 69 x 80 mm
PDXR2535-WH 35W 4375lm 125 1200 x 52 x 70 mm
PDXR2540-WH 40W 5000lm 125 1500 x 52 x 70 mm
PDXR2560-WH 60W 7500lm 125 1650 x 69 x 80 mm
