Supreme Street Light

FEATURES

Supreme Street Light series luminaire is the ideal solution that fulfils requirements of functional street lighting and residential areas, which working with outstanding heat dissipation and compacting system. Equipped with high-quality electrical components, long lifetime is assured. Tool-free design and disconnector device, enables easy, safe and minimal cost for maintenance. Efficient system also to reduce energy consumption and to create a more attractive urban living environment and visual comforts for public and residential areas. With patented housing design and range of optics, Supreme series luminaire is also available with SPD Optional 10/15/20KV & Photocell NEMA socket. It can be installed horizontally and vertically, and the adjustable angle is +-15°. The finish is accessible in the RAL colors requested by client.

Description:
HOUSING Die-cast Aluminum Body
DIFFUSER Polycarbonate Lens with Tempered Glass Cover
COLOR AVAILABLE Black, Grey & White
LED CHIP 100,000 Hours (L90 B50)
REFLECTOR Aluminum Reflector
WORKING TEMPERATURE -40C° ~ +55C°
VOLTAGE AC100 - 265
MacAdam <3
UGR < 22
Luminous Efficacy (lm/W) 160
NEMA SOCKET
SURGE PROTECTION 10KV
Weight (30W - 70W) 3.3Kg
Weight (80W - 200W) 5.0Kg
Weight (250W - 350W) 6.4Kg
Technical Specifications:

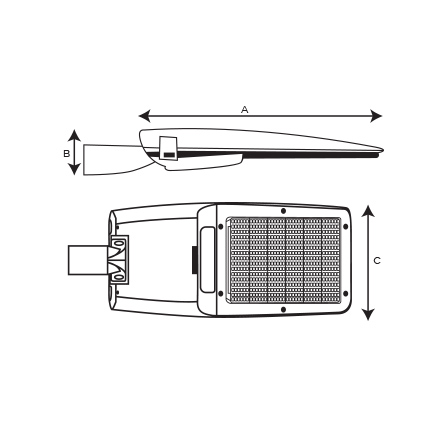

Item Code PowerLamp CCTLumen DIMENSIONS
STXR313130 30W LED 3000K, 4000K, 6000K 4800lm A498 X B115 X C180 mm
STXR313150 50W LED 3000K, 4000K, 6000K 8000lm A498 X B115 X C180 mm
STXR313170 70W LED 3000K, 4000K, 6000K 11200lm A498 X B115 X C180 mm
STXR313180 80W LED 3000K, 4000K, 6000K 12800lm A629 X B125 X C250 mm
STXR3131100 100W LED 3000K, 4000K, 6000K 16000lm A629 X B125 X C250 mm
STXR3131120 120W LED 3000K, 4000K, 6000K 19200lm A629 X B125 X C250 mm
STXR3131150 150W LED 3000K, 4000K, 6000K 24000lm A629 X B125 X C250 mm
STXR3131200 200W LED 3000K, 4000K, 6000K 32000lm A629 X B125 X C250 mm
STXR3131250 250W LED 3000K, 4000K, 6000K 40000lm A798 X B138 X C280 mm
STXR3131300 300W LED 3000K, 4000K, 6000K 48000lm A798 X B138 X C280 mm
STXR3131350 350W LED 3000K, 4000K, 6000K 56000lm A798 X B138 X C280 mm
