Stepy II Step Light

Submit an enquiry

FEATURES

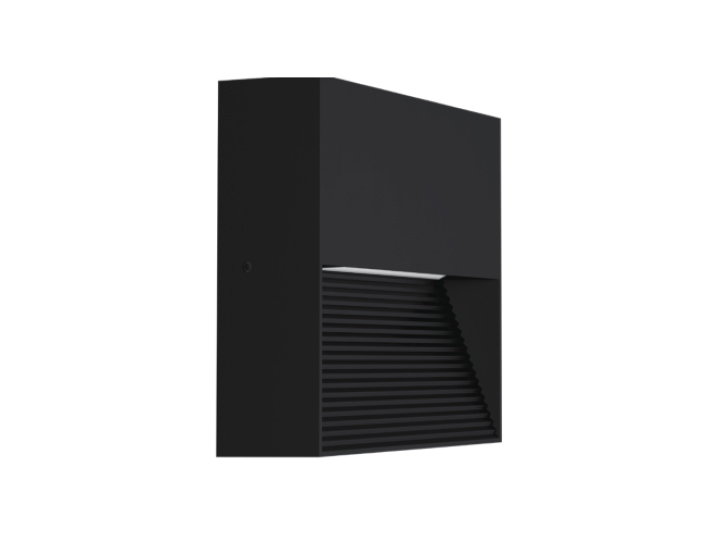

The surface mounted step light features a slim line, cast aluminum body and cable gland for easy installation made of aluminum which provide a great thermal management, it has IP65 protection to guarantee its use outdoors. Trim features a special chromate process before a polyester powder coated finish is applied, for extended wear in harsh external environments. It is a surface-mounted LED step light that stands out for its extremely fine design.

STEPY II

Submit an enquiry
Description:
HOUSING
Die-cast Aluminum.
DIFFUSER Tempered Glass, Clear or Frosted Acrylic
COLOR AVAILABLE Black, & Grey
LIFESPAN
 100,000 Hours (L90 B50)
REFLECTOR Aluminum Reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE -40C° ~ +55C°
UGR <15
LUMINOUS EFFICACY (lm/W) 100
MacAdam <3
Technical Specifications:

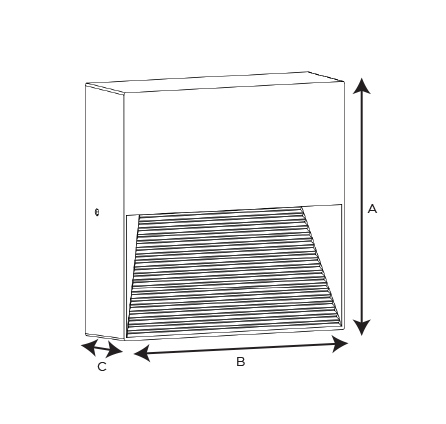

Item Code PowerLamp CCTLumen DIMENSIONS
STXR354505 05W LED 3000K, 4000K, 6000K 500lm A114 X B114 X C37 mm
STXR354510 10W LED 3000K, 4000K, 6000K 1000lm A180 X B180 X C35 mm
