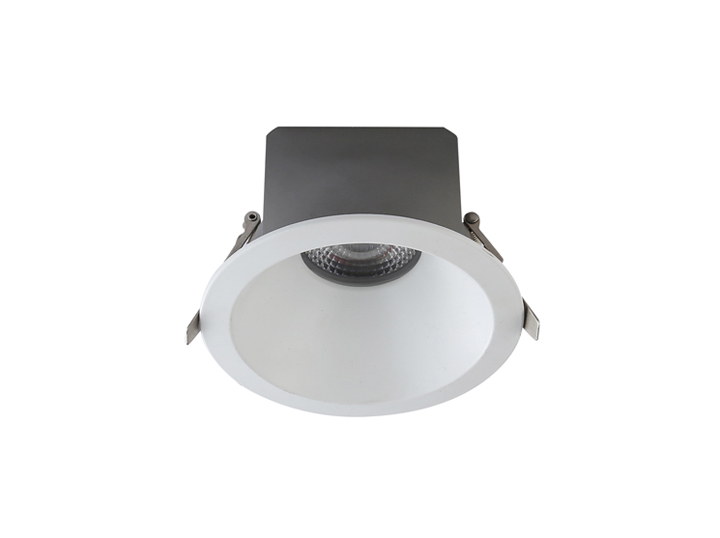

SMOOTHY LED Down Light

Submit an enquiry

FEATURES

Smoothy LED Down Light is die-cast aluminum body, die-cast aluminum heat sink, solid springs and chrome reflector. COB high power LED chip provides perfect combination of high lighting efficiency, comfortable lighting and humanization design, made by high quality Aluminum profile. The item is very professional, and it has all the characteristics to be involved in any kind of architectural or design project.

SMOOTHY

Submit an enquiry
Description:

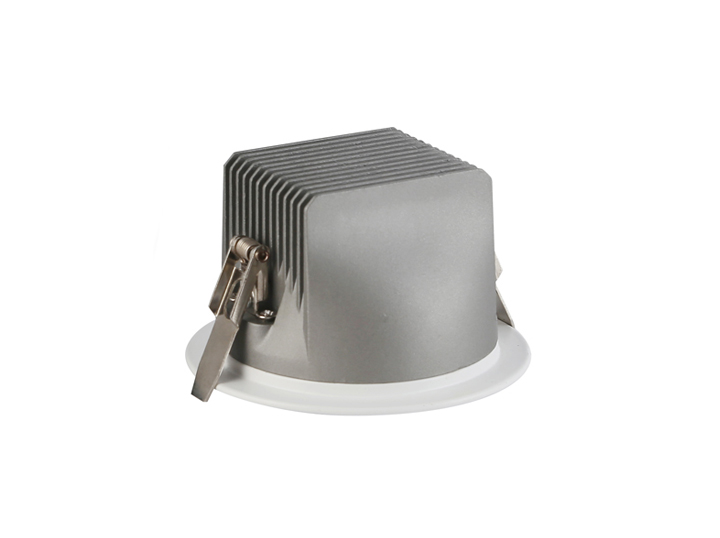

HOUSING Luminaire Body of Die-cast Aluminum and Heat Sink form a compact unit, white, powder-coated.
DIFFUSER PMMA
COLOR AVAILABLE White
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE-40C° ~ +50C°
UGR <19
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

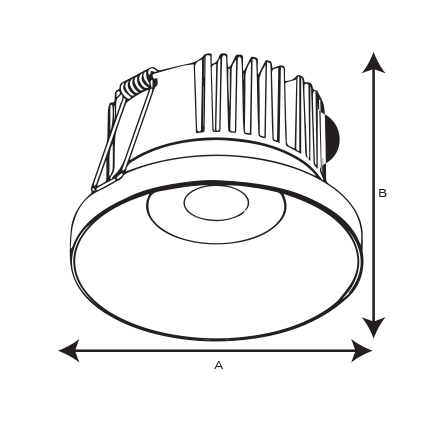

Item Code PowerLamp CCTLumen DIMENSIONS
DXR178405 05W LED 3000K, 4000K, 6000K 600lm A65 X B40 mm
DXR178410 10W LED 3000K, 4000K, 6000K 1200lm A90 X B55 mm
DXR178415
 15W LED 3000K, 4000K, 6000K 1800lm A115 X B70 mm
DXR178420 20W LED 3000K, 4000K, 6000K 2400lm A140 X B77 mm
DXR178430 30W LED 3000K, 4000K, 6000K 3600lm A182 X B92 mm
