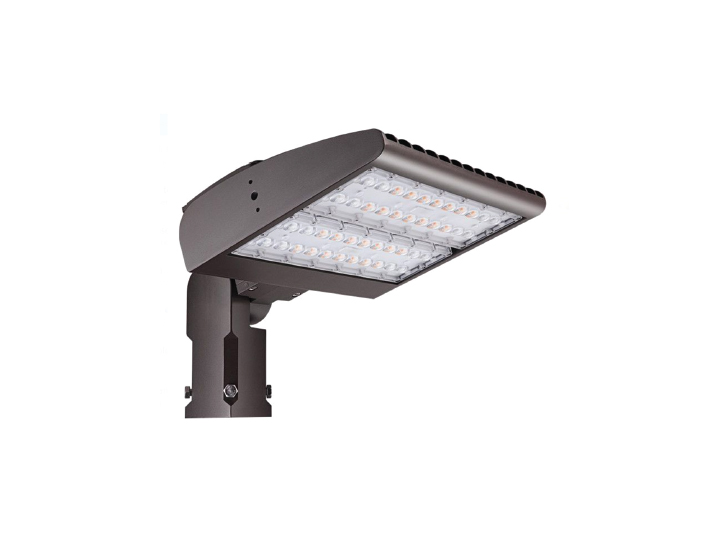

Slimy - UL Street Light

FEATURES

Slimy Street Light series luminaire is the ideal solution that ful?ls requirements of functional street lighting and residential areas, which working with outstanding heat dissipation and compacting system. Equipped with high-quality electrical components, long lifetime is assured. Tool-free design and disconnector device, enables easy, safe and minimal cost for maintenance. Ecientsystem also to reduce energy consumption and to create a more attractive urban living environ- ment and visual comforts for public and residential areas. With patented housing design and range of optics, Slimy series luminaire is also available with SPD Optional 10/15/20KV & Photocell NEMA socket. It can be installed horizontally and vertically, and the adjustable angle is +-15°. The ?nish is accessible in the RAL colors requested by client. Complying with UL Standards

SLIMY - UL

Submit an enquiry
Description:
HOUSING Die-cast Aluminum Body
DIFFUSER Polycarbonate Lens
COLOR AVAILABLE
Black, Grey & White
LIFESPAN
>100,000 Hours L80 B20
REFLECTOR Aluminum Reflector
VOLTAGE AC100~265V
WORKING TEMPERATURE -20°C ~ +60°C
UGR <22
LUMINOUS EFFICACY (lm/W) 135
MacAdam <3
Surge Protection
10KV
Nema Socket
Optional
UL LISTED
E542592
Selectable CCT
3000K/4000K/5000K
Selectable Power
120W/100W/80W
300W/240W/200W
Technical Specifications:

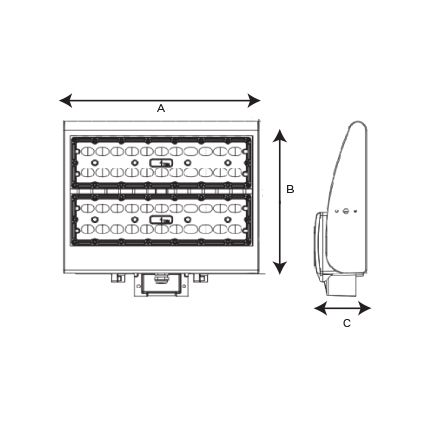

Item Code PowerLamp CCTLumen DIMENSIONS
STXR317120 80W LED 3000K, 4000K, 6000K 10800lm A318.8 X B351 X C77mm
STXR317120 100W LED 3000K, 4000K, 6000K 13500lm A318.8 X B351 X C77mm
STXR317120 120W LED 3000K, 4000K, 6000K 16200lm A318.8 X B351 X C77mm
STXR317200 200W LED 3000K, 4000K, 6000K 27000lm A318.8 X B588.6 X C88mm
STXR317200 240W LED 3000K, 4000K, 6000K 32400lm A318.8 X B588.6 X C88mm
STXR317200 300W LED 3000K, 4000K, 6000K 40500lm A318.8 X B588.6 X C88mm
