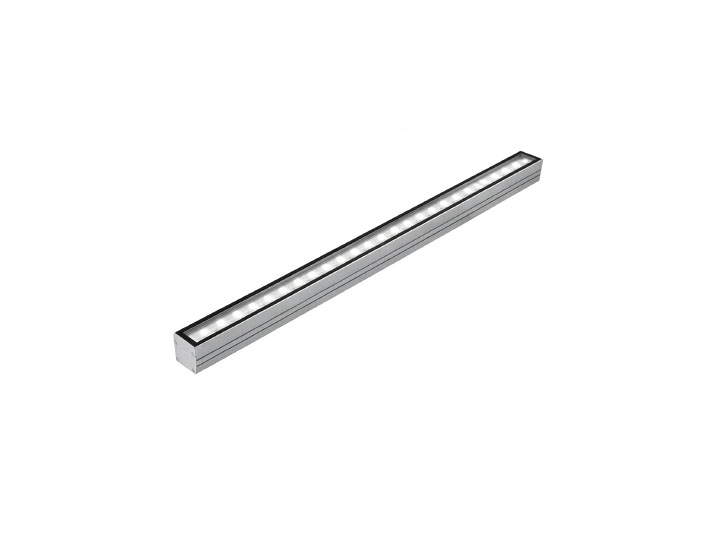

Seal Wall Washer Light

Submit an enquiry

FEATURES

This high-power LED linear light features a sleek, modern design with enhanced heat-dissipation architecture to ensure
excellent stability and a long operational lifespan. The housing is manufactured from premium #6063 aluminum alloy
with a durable anodized surface ?nish, while the lampshade is made of high-strength toughened glass that resists
impact and friction and offers superior rainwater self-cleaning performance. Delivering high luminous output with
outstanding color consistency, the ?xture is equipped with an internal constant-current driver and PWM dimming
control; for RGB applications, it supports up to 65,536 grayscale levels, enabling smoother dynamic dimming transitions
and richer, more vibrant color effects.



SEAL

Submit an enquiry
Description:
HOUSING
Die-cast Aluminum Body.
DIFFUSER Tempered Safety Glass
COLOR AVAILABLE Black, White & Grey
LIFESPAN
 >50,000 Hours (L90 B10)
REFLECTOR PMMA Lens
VOLTAGE AC100~305V/ DC24V 50-60 HZ
WORKING TEMPERATURE -25C° ~ +50C°
LUMINOUS EFFICACY (lm/W) 100
UGR <16
MacAdam <3
Technical Specifications:

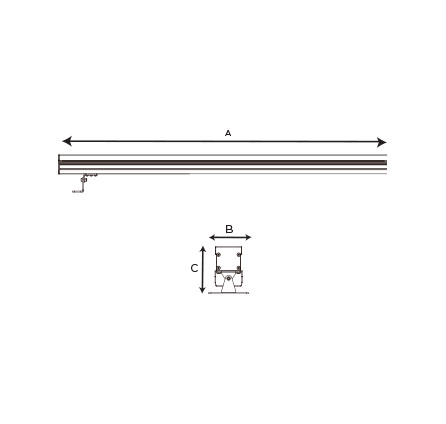

Item Code PowerLamp CCT Lumen DIMENSIONS
LLXR503545
45W LED 3000K, 4000K, 6000K 4500lm A1000 X B92 X C110 mm
LLXR503550 50W LED 3000K, 4000K, 6000K 5000lm A1000 X B92 X C110 mm
LLXR503560 60W LED 3000K, 4000K, 6000K 6000lm A1000 X B92 X C110 mm
LLXR503575 75W LED 3000K, 4000K, 6000K 7500lm A1000 X B92 X C110 mm
