Ray Wall External Light

Submit an enquiry

FEATURES

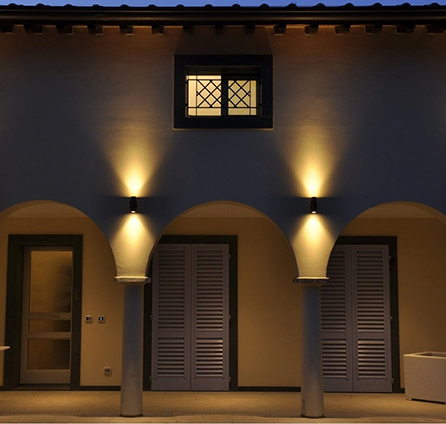

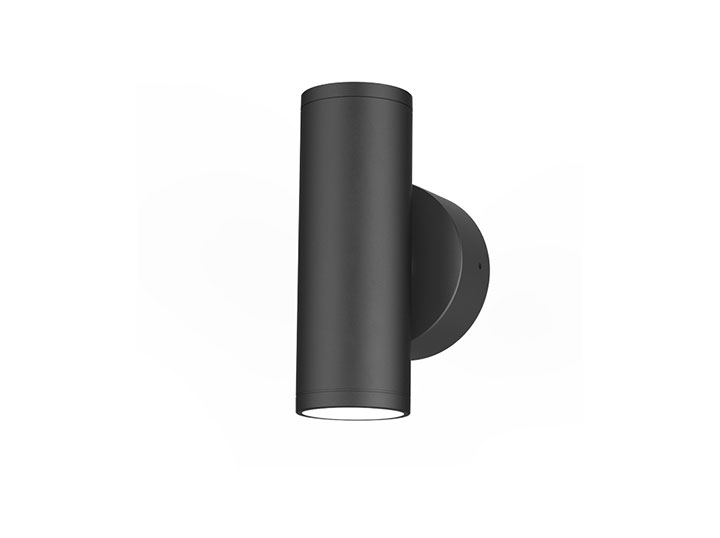

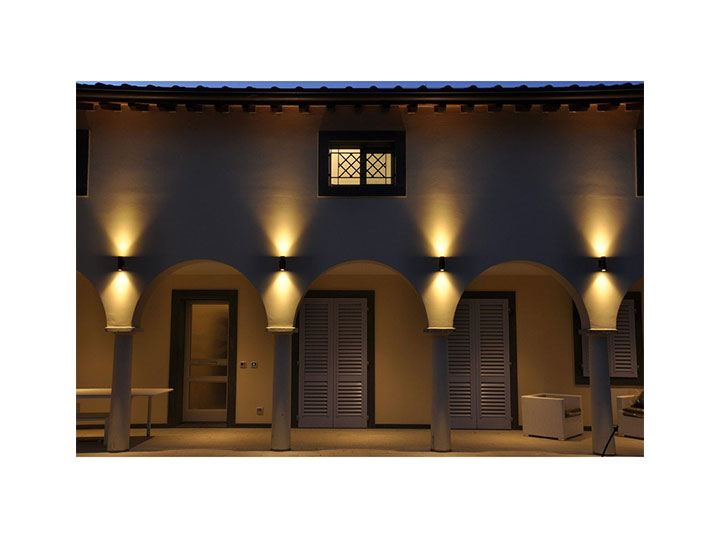

Stylishly clean wall luminaire giving attractive up and down light. Ray Wall Surface Light with up and down light effect design. Adopt 6063 aluminum housing providing excellent thermal management. IP65 waterproof for outdoor use without-Loop and in-Loop function.

RAY

Submit an enquiry

Description:
HOUSING Die-cast Aluminum
DIFFUSER Tempered Glass Diffuser
COLOR AVAILABLE White & Black
LIFESPAN
 > 100,000 Hours (L90 B50)
REFLECTOR Aluminum Reflector
VOLTAGE AC200~240V
WORKING TEMPERATURE-40C° ~ +55C°
UGR <19
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

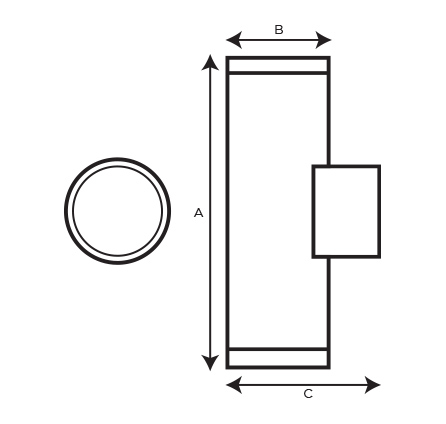

Item Code PowerLamp CCTLumen Dimensions
WSXR375210 2X5W LED 3000K, 4000K, 6000K 1200lm A170 x B60 x C105 mm
WSXR375220 2X10W LED 3000K, 4000K, 6000K 2400lm A200 x B76 x C121 mm
WSXR375230 2X15W LED 3000K, 4000K, 6000K 3600lm A230 x B100 x C145 mm
