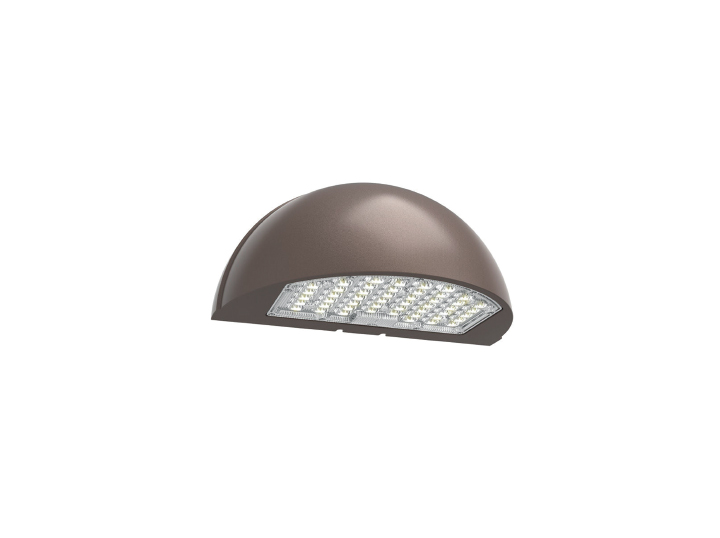

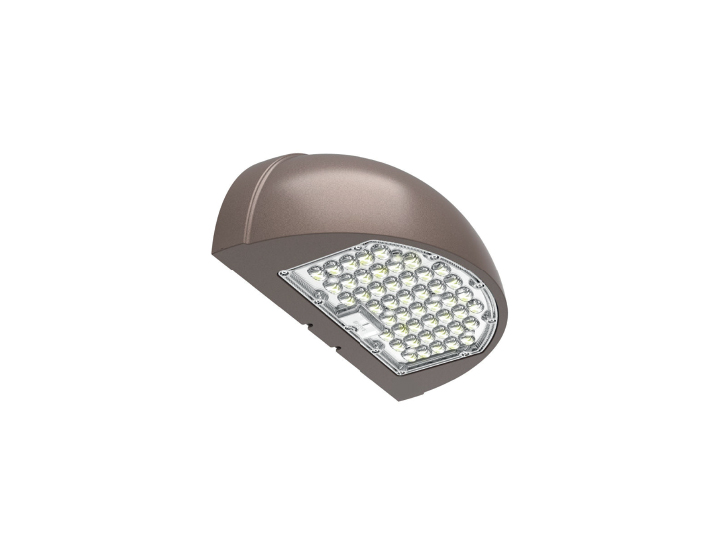

Quarter Wall External Light

Submit an enquiry

FEATURES

A great looking outdoor light fitting, excellent for lighting your building, Ideal for use along walkways, pavements or
either side of a doorway and with its opal diffuser, this fitting is perfect installed at any height without risk of glare.
Versatile in nature this fitting is ideal for use on with the wall or ceiling with impact-resistant synthetic covers made of
polycarbonate. Available in a choice of three fabulous colour finishes, white, Black, or silver grey.

QUARTER

Submit an enquiry
Description:
HOUSING
Die-cast Aluminum White, powder-coated Luminaire body
DIFFUSER
Anti-UV and fire-resistant PC lens
COLOR AVAILABLE
White, Black, Brown, & Dark-Grey
LIFESPAN
 >50,000 Hours (L90 B10)
REFLECTOR Aluminum Reflector
VOLTAGE
120-277VAC 60Hz
WORKING TEMPERATURE -10C° ~ +50C°
UGR <22
LUMINOUS EFFICACY (lm/W) 135
MacAdam <3
Technical Specifications:

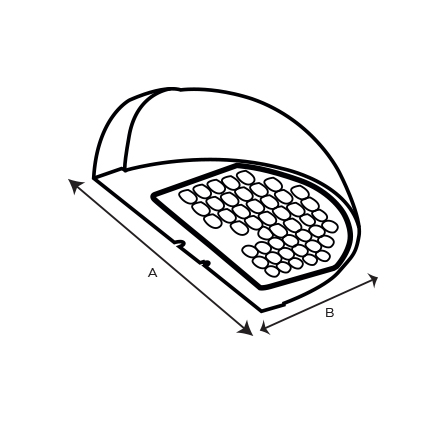

Item Code PowerLamp CCTLumen DIMENSIONS
WSXR387524
 24W LED 3000K, 4000K, 6000K 3240lm A330 X B175 mm
WSXR387532 32W LED 3000K, 4000K, 6000K 4320lm A330 X B175 mm
WSXR387540 40W LED 3000K, 4000K, 6000K 5400lm A330 X B175 mm
WSXR387548
 48W LED 3000K, 4000K, 6000K 6400lm A330 X B175 mm
WSXR387564 64W LED 3000K, 4000K, 6000K 8640lm A330 X B175 mm
WSXR387580 80W LED 3000K, 4000K, 6000K 10800lm A330 X B175 mm
