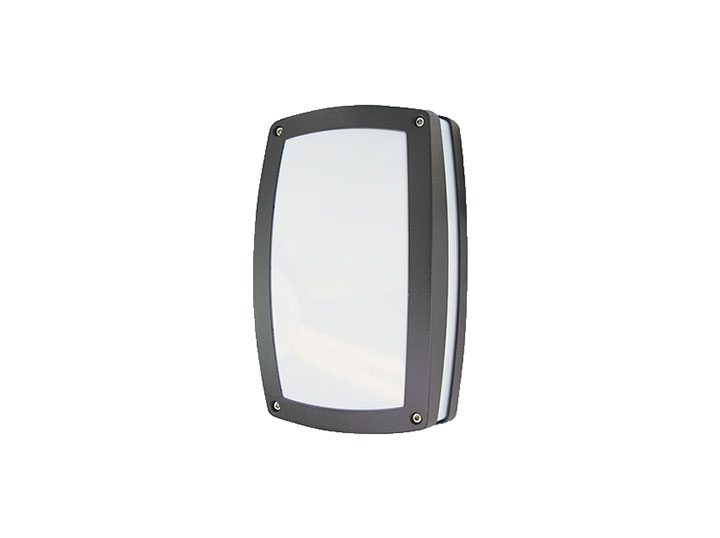

Puzzle II Wall Exernal Light

Submit an enquiry

FEATURES

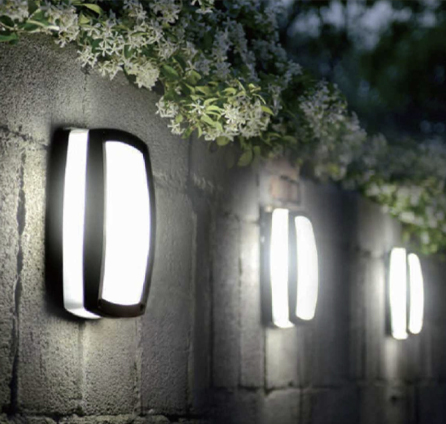

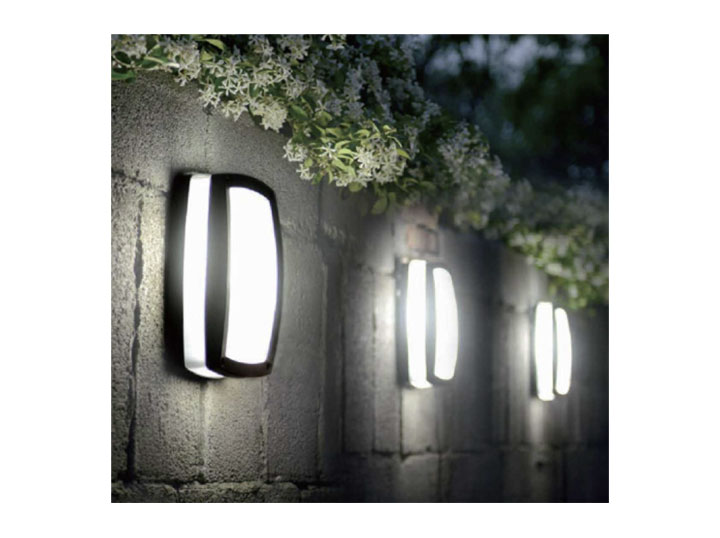

LED Fixture for illuminating common or outdoor areas near homes, is suitable for indoor and outdoor areas, with ceiling or wall installation where more intense and diffused lighting is required.

It is particularly suited for lighting stairs, building entrance areas, corridors in shopping malls, shops, hotels and restaurants.

Possibility of customizing it by changing the type of light source. The wide range of Mazda LED light sources with LED and CFL sources or even to transform it into emergency lighting.


PUZZLE II

Submit an enquiry
Description:
HOUSING Die-cast Aluminum.
DIFFUSER Opal PMMA Anti Yellowing Resistant
COLOR AVAILABLE Black, White & Dark Grey
LIFESPAN
 > 100,000 Hours (L90 B50)
REFLECTOR Aluminum Reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE -40C° ~ +55C°
UGR <22
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:
Item Code PowerLamp CCTLumen

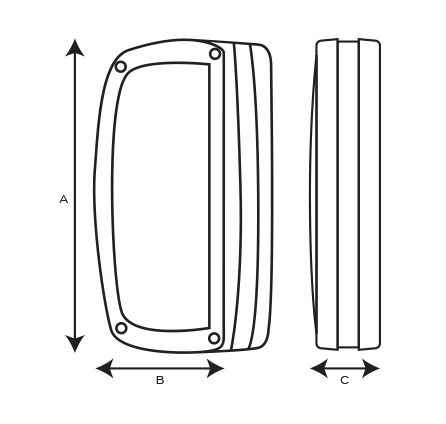

Dimensions
WXR343618 18W LED 3000K, 4000K, 6000K 2160lm A187 X B93 X C300 mm
WXR343624 24W LED 3000K, 4000K, 6000K 2880lm A187 X B93 X C300 mm
WXR343636 36W LED 3000K, 4000K, 6000K 4320lm A187 X B93 X C300 mm
