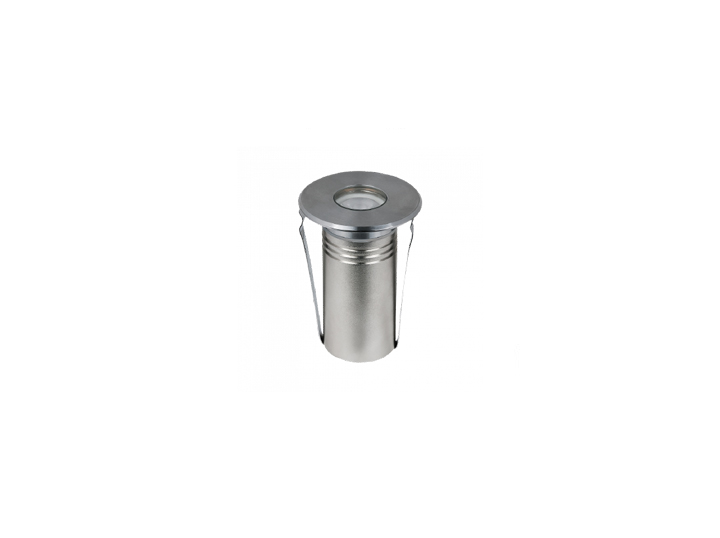

Point II Up Light

FEATURES

Point II is a high-quality, IP68-rated underwater light fixture, specifically designed for reliable performance in wet environ- ments such as water features, ponds, and other submerged installations. Built with a solid plate construction, the UNXR Series is fully submersible, making it an ideal choice for areas requiring durable, long-lasting lighting solutions. Its recessed under-mount design ensures a seamless integration into aquatic landscapes. Engineered to deliver robust illumination, this fixture provides exceptional water resistance, durability, and functionality for both residential and commercial water feature applications.

Description:
HOUSING
AISI 316 stainless steel.
DIFFUSER Tempered Safety Glass
COLOR AVAILABLE Stainless-Steel Finish
LIFESPAN
50,000 Hours (L90 B10)
REFLECTOR PMMA lenses for LEDs
VOLTAGE AC100~240V/DC24V 50-60 HZ
WORKING TEMPERATURE -20C° ~ +60C°
LUMINOUS EFFICACY (lm/W) 80
UGR <22
MacAdam <3
Gasket Silicon Rubber Gaskets
Technical Specifications:
Item Code PowerLamp CCTLumen DIMENSIONS
UNXR207901.5 1.5W LED 3000K, 4000K, 6000K 120lm A38 X B65 X C27 mm
UNXR207902 02W LED 3000K, 4000K, 6000K 160lm A55 X B82 X C42 mm
UNXR207903 03W LED 3000K, 4000K, 6000K 240lm A55 X B82 X C42 mm
