| Description: | |
| HOUSING |
Die-cast Aluminum Body, Aluminum Extruded Column
|
| DIFFUSER | Polycarbonate Transparent Diffuser |
| COLOR AVAILABLE | Powder Paint Coating with RAL Color.
|
| LIFESPAN |
>100,000 Hours (L90 B50) |
| REFLECTOR | Aluminum Reflector |
| VOLTAGE | AC100-240V |
| WORKING TEMPERATURE | -40C° ~ +55C° |
| LUMINOUS EFFICACY (lm/W) | 130 |
| UGR | <22 |
| MacAdam | <3 |
| Weight (H270) |
27Kg
|
| Weight(H350A) |
31.1Kg
|
| Weight(H350B) |
31Kg
|
Weight(H400) |
33.2Kg |
| Technical Specifications: | |||||

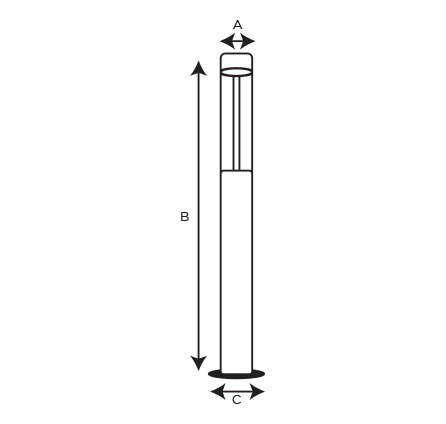

| Item Code | Power | Lamp | CCT | Lumen | DIMENSIONS |
|---|---|---|---|---|---|
| STXR314050-H270 | 50W | LED | 3000K, 4000K, 6000K | 6500lm | A168 X B2700 X C240 mm |
| STXR314050-H350A | 50W | LED | 3000K, 4000K, 6000K | 6500lm | A168 X B3500 X C240 mm |
| STXR314050-H350B | 50W | LED | 3000K, 4000K, 6000K | 6500lm | A168 X B3500 X C280 mm |
| STXR314050-H400 | 50W | LED | 3000K, 4000K, 6000K | 6500lm | A168 X B4000 X C280 mm |
