Features

Peak Aluminum profiles/channel is made of sturdy anodized or powder-coated aluminum metal and has a specific design to protect LED strip and create softer lighting effect. Aluminum profile/channel is a great housing and excellent heat sink for flexible LED strips. The profiles is cover a wide range of ceiling application like Hotels, Supermarkets, Offices, Exhibitions and workstations, or any other visible installations where the strips lighting is exposed. The profiles are supported by snap on covers in Polycarbonate diffusers .(other colors avilable on request)

PEAK

Submit an enquiry
Description:
HOUSING
High Pure Extruded Aluminum, Anodized
DIFFUSER
Polycarbonate Diffuser
COLOR AVAILABLE White, Black, Silver Powder Coating
(other color avilable upon request)
LIFESPAN
50,000 Hours (L70 B10)
REFLECTOR
Aluminum Reflector
VOLTAGE
AC220-240V/50Hz~60Hz
WORKING TEMPERATURE
20C°~ + 40C°
UGR <22
LUMINOUS EFFICACY (lm/W) 93
MacAdam <3
Technical Specifications:

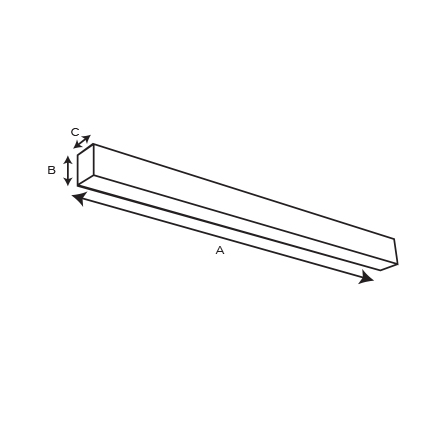

Item Code PowerLamp CCTLumen DIMENSIONS
PDXR2831 31W LED 3000K, 4000K, 6000K 2883lm A1232 X B80 X C50 mm
PDXR2846 46W LED 3000K, 4000K, 6000K 4278lm A1841 X B80 X C50 mm
PDXR2861 61W LED 3000K, 4000K, 6000K 5673lm A2449 X B80 X C50 mm
