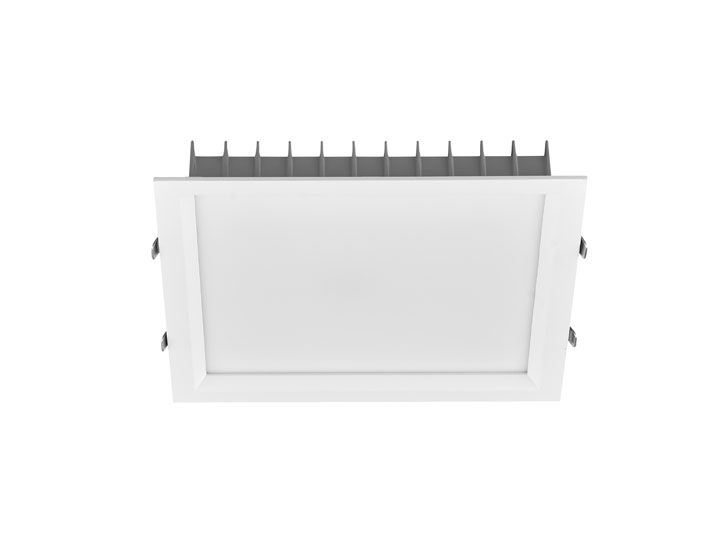

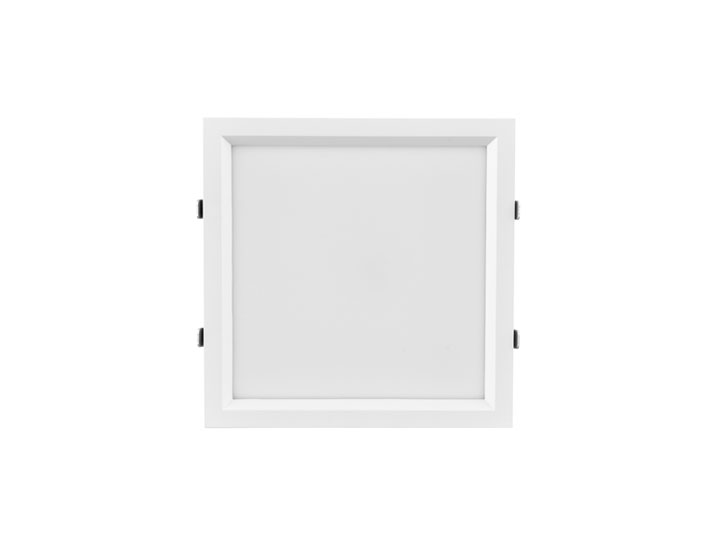

Panelo SQ LED Down Light

Submit an enquiry

FEATURES

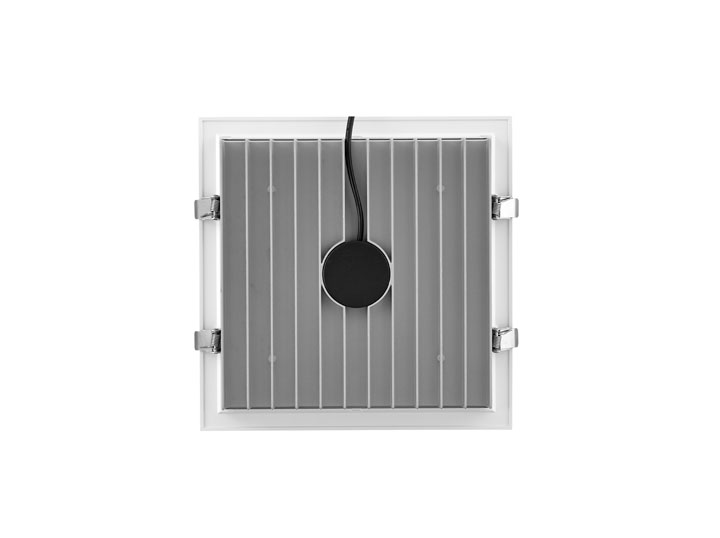

Panelo SQ is a square shaped down light recognized as one of the most trusted and highly desirable consumer fitting, we manufactured it to the highest standards. This superior design skillfully prevents the human eyes contact with the light sources directly, makes the light more soft. Meanwhile the light efficiency reaches to 120lm/w with perfect accent lighting performance. That makes it become the priority selected product for commercial lighting. Great cooling fins heat sink design increases the interface between heat sink and air, which makes the heat dissipating performance outstanding and extend the service life of the downlight. Suitable for commercial and residential applications like office, supermarket, shop, school, hotel, restaurant, workshop, warehouse, home etc.

PANELO SQ

Submit an enquiry
Description:
HOUSING Luminaire Body Die-cast Aluminum, White Powder-coated
DIFFUSER Opal/Frosted PMMA/Polycarbonate
COLOR AVAILABLE White
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE
 -40C° ~ +50C°
UGR <22
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

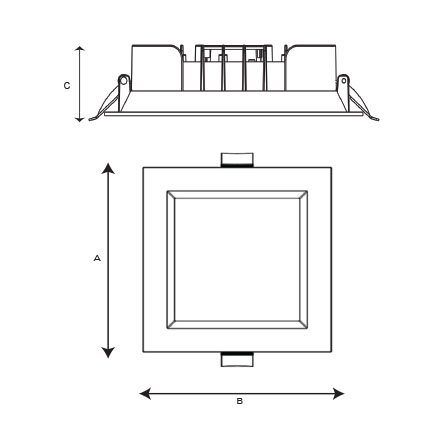

Item Code PowerLamp CCTLumen DIMENSIONS
DXR179208 08W LED 3000K, 4000K, 6000K 960lm A100 X B100 X C37 mm
DXR179212 12W LED 3000K, 4000K, 6000K 1440lm A100 X B100 X C37 mm
DXR179215 15W LED 3000K, 4000K, 6000K 1800lm A110 X B110 X C37 mm
DXR179218 18W LED 3000K, 4000K, 6000K 2160lm  A135 X B135 X C37 mm
DXR179225 25W LED 3000K, 4000K, 6000K 3000lm A135 X B135 X C37 mm
DXR179230  30W LED 3000K, 4000K, 6000K 3600lm A165 X B165 X C37 mm
DXR179235 35W LED 3000K, 4000K, 6000K 4200lm A165 X B165 X C37 mm
DXR179240
 40W LED 3000K, 4000K, 6000K 4800lm A215 X B215 X C37 mm
