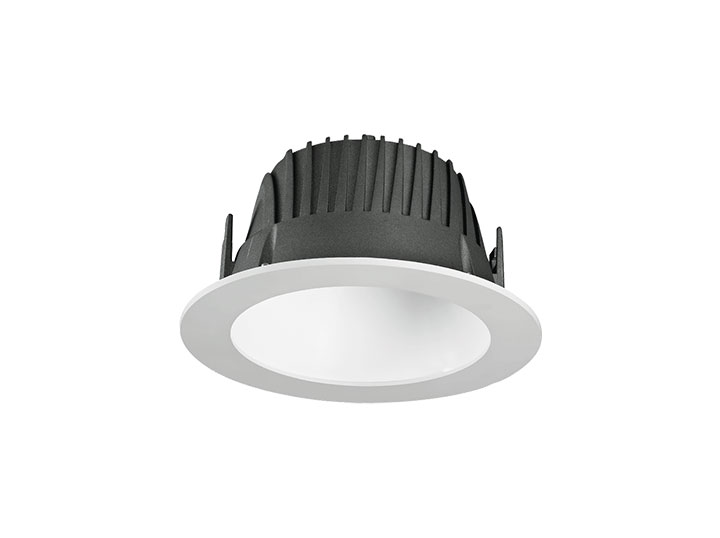

Oscar LED Down light

Submit an enquiry

FEATURES

Oscar LED Down light is unique traditional deep reflector and COB high power LED chip provides perfect combination of high lighting efficiency, comfortable lighting and humanization design, made by high quality Aluminum profile provides excellent thermal dissipation with great heatsink designed for any ceiling installations. Isolated driver solution both in dimmable and non-dimmable version.

OSCAR

Submit an enquiry
Description:
HOUSING Luminaire Body Die-cast Aluminum, White Powder-coated and Heat Sink form Compact Unit
DIFFUSER Opal/PMMA/Polycarbonate
COLOR AVAILABLE White
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)

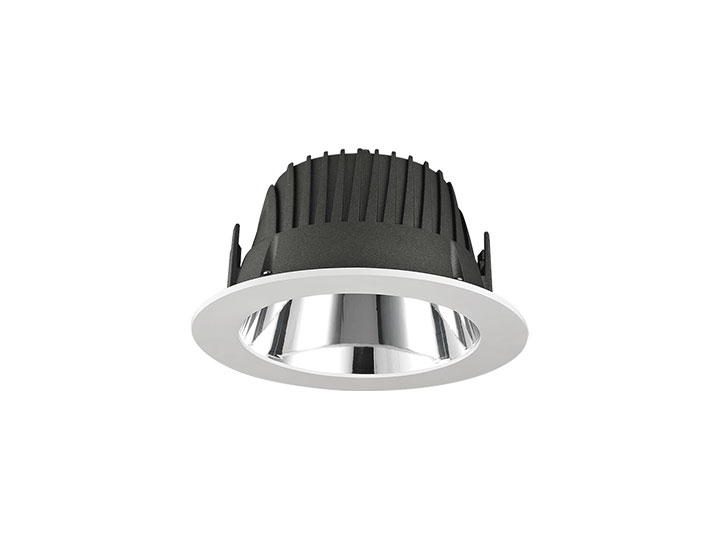

REFLECTOR
 Aluminum reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE
 -40C° ~ +50C°
UGR < 19
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

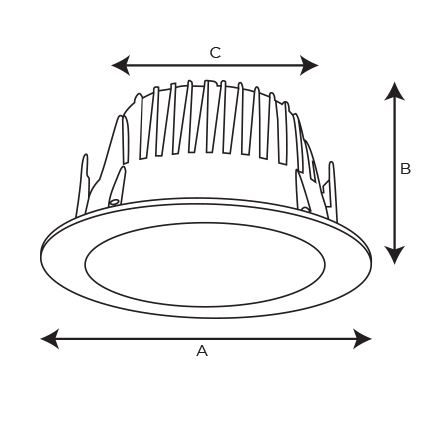

Item Code PowerLamp CCTLumen Dimensions
DXR182007 07W LED 3000K, 4000K, 6000K 840lm A95 X B65 X C70 mm
DXR182010
 10W LED 3000K, 4000K, 6000K 1200lm A95 X B65 X C70 mm
DXR182012
 12W LED 3000K, 4000K, 6000K 1440lm A105 X B65 X C70 mm
DXR178215
 15W LED 3000K, 4000K, 6000K 1800lm A130 X B70 X C105 mm
DXR178220
 20W LED 3000K, 4000K, 6000K 2400lm A165 X B90 X C155 mm
DXR178225
 25W LED 3000K, 4000K, 6000K 3000lm A185 X B95 X C165 mm
DXR178230 30W LED 3000K, 4000K, 6000K 3600lm A185 X B95 X C165 mm
DXR178240 40W LED 3000K, 4000K, 6000K 4800lm A220 X B105 X C200 mm
