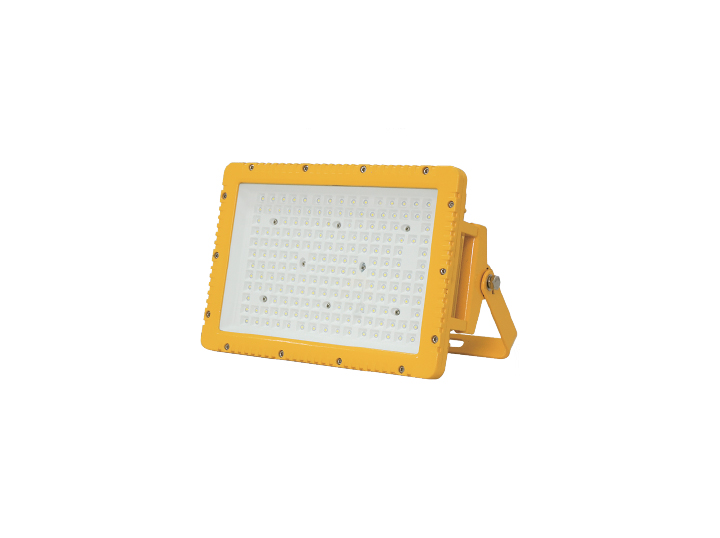

Orlex Industrial Light

FEATURES

The ORLEX explosion-proof lighting series is specifically designed for use in highly hazardous industrial environments, offering robust performance and maximum safety in locations such as oil exploitation sites, oil refineries, petrochemical plants, military facilities, offshore oil platforms, and oil carriers, where the presence of explosive gases and flammable dust poses significant risks. Engineered to operate safely in explosive gas atmospheres classified as Zone 1 and Zone 2, as well as flammable dust atmospheres in Zone 21 and Zone 22, the ORLEX fixtures are certified for IIA, IIB, and IIC gas groups and meet stringent temperature classifications from T1 to T6, ensuring reliable operation even under extreme thermal conditions. These versatile lighting solutions are suitable for diverse settings including oilfields, drilling sites, chemical processing facilities, and other areas prone to flammable and explosive hazards, while also being ideal for both indoor and outdoor applications such as workshops, warehouses, and general industrial spaces, delivering dependable illumination and enhanced safety critical to maintaining uninterrupted operations in demanding environments

Description:
HOUSING
Die-Cast Aluminum
DIFFUSER
PC Optical Lens and Tempered Glass
COLOR AVAILABLE Black, Grey
LIFESPAN
50,000 Hours (L80 B10)
REFLECTOR
Aluminum Reflector
VOLTAGE AC 220V (85~265V)
WORKING TEMPERATURE
-55°C ~ +60°C
UGR <25
LUMINOUS EFFICACY (lm/W) 135
MacAdam <3
Technical Specifications:

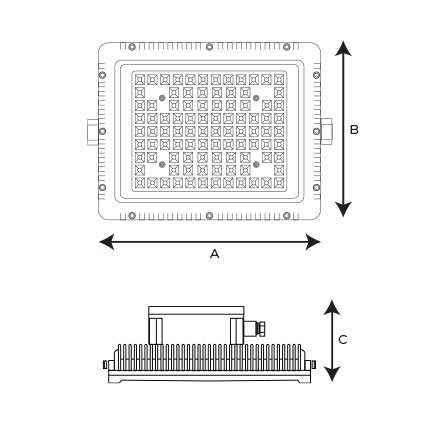

Item Code PowerLamp CCTLumen DIMENSIONS
IDXR202220
20W LED 3000K, 4000K, 6000K 2700lm A250 X B190 X C118mm
IDXR202230 30W LED 3000K, 4000K, 6000K 4050lm A250 X B190 X C118mm
IDXR202240 40W LED 3000K, 4000K, 6000K 5400lm A250 X B190 X C118mm
IDXR202250 50W LED 3000K, 4000K, 6000K 6750lm A250 X B190 X C118mm
IDXR202260 60W LED 3000K, 4000K, 6000K 8100lm A300 X B244 X C133mm
IDXR202270 70W LED 3000K, 4000K, 6000K 9450lm A300 X B244 X C133mm
IDXR202280 80W LED 3000K, 4000K, 6000K 10800lm A300 X B244 X C133mm
IDXR2022100 100W LED 3000K, 4000K, 6000K 13500lm A300 X B244 X C133mm
IDXR2022120 120W LED 3000K, 4000K, 6000K 16200lm A350 X B244 X C133mm
IDXR2022150 150W LED 3000K, 4000K, 6000K 20250lm A350 X B244 X C133mm
IDXR2022180 180W LED 3000K, 4000K, 6000K 24300lm A400 X B280 X C133mm
IDXR2022200 200W LED 3000K, 4000K, 6000K 27000lm A400 X B280 X C133mm
IDXR2022220 220W LED 3000K, 4000K, 6000K 29700lm A400 X B280 X C133mm
