Nyc LED Down Light

Submit an enquiry

FEATURES

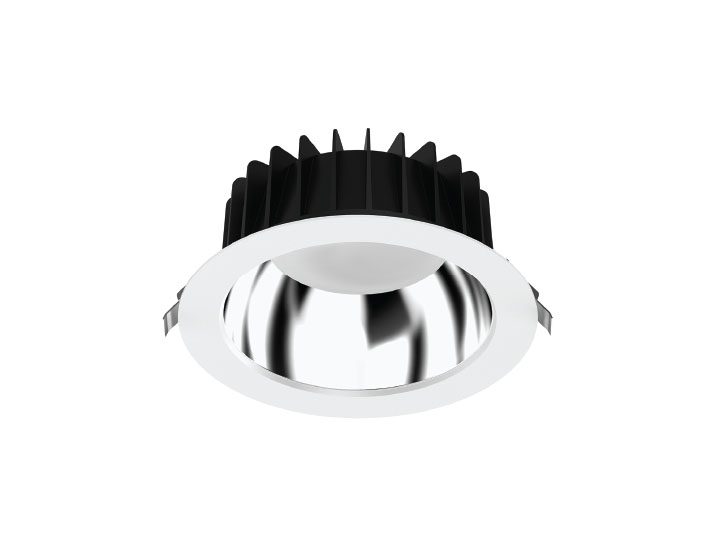

NYC LED downlight with traditional deep reflector that provides perfect combination of high lighting efficiency, comfortable lighting and humanization design, without compromising on lighting performance (color rendering and color uniformity). CCT changeable function is available. It offers a wide choice of options for creating the desired ambience, housing provides excellent thermal dissipation. LED Module design could save SKU and offer an easy module replacement. It supports a great compatibility for non- dim, triac dim, 0-10V, DALI dim with worldwide dimmers.

NYC

Submit an enquiry
Description:
HOUSING Luminaire Body of Die-cast Aluminum White Powder-coated.
DIFFUSER Tempered Frosted or Clear Tempered Glass
COLOR AVAILABLE White
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE -40C° ~ +50C°
UGR <19
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

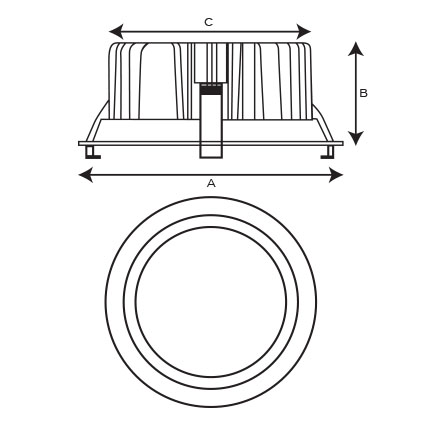

Item Code PowerLamp CCTLumen DIMENSIONS
DXR171510 10W LED 3000K, 4000K, 6000K 1200lm A95 X B80 X C54 mm
DXR171513 13W LED 3000K, 4000K, 6000K 1560lm A110 X B86 X C54 mm
DXR171518
 18W LED 3000K, 4000K, 6000K 2160lm A145 X B120 X C78 mm
DXR171525
 25W LED 3000K, 4000K, 6000K 3000lm A172 X B145 X C90 mm
DXR171525 25W LED 3000K, 4000K, 6000K 3000lm A228 X B195 X C99 mm
