| Description: | |
| HOUSING |
Luminaire Body of die-cast Aluminum, White, powder-coated. Luminaire body and Heat Sink form a Compact Unit
|
| DIFFUSER | Clear Tempered Glass |
| COLOR AVAILABLE | White/Black |
| LIFESPAN |
>50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50) |
| REFLECTOR |
White, Black, Chrome Reflector |
| VOLTAGE | 100-240V |
| WORKING TEMPERATURE | -40C° ~ +50C° |
| UGR | <22 |
| LUMINOUS EFFICACY (lm/W) | 120 |
| MacAdam | <3 |
| Technical Specifications: | |||||

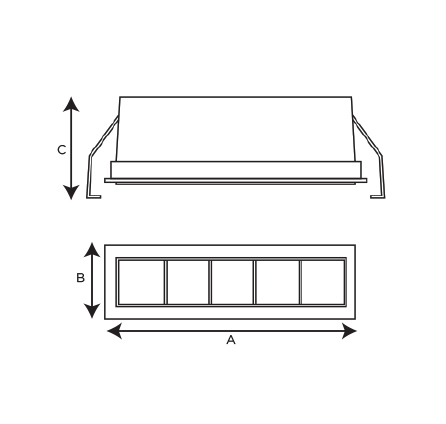

| Item Code | Power | Lamp | CCT | Lumen | DIMENSIONS |
|---|---|---|---|---|---|
| GDXR205102.5 | 2.5W | LED | 3000K, 4000K, 6000K | 300lm | A95 X B45 X C49 mm |
| GDXR205105 | 05W | LED | 3000K, 4000K, 6000K | 600lm | A75 X B45 X C49 mm |
| GDXR205112.5 | 12.5W | LED | 3000K, 4000K, 6000K | 1500lm | A147 X B45 X C49 mm |
| GDXR205125 |
25W | LED | 3000K, 4000K, 6000K | 3000lm | A280 X B45 X C49 mm |
| GDXR205137.5 |
37.5W | LED | 3000K, 4000K, 6000K | 4500lm | A413 X B45 X C49 mm |
