FEATURES

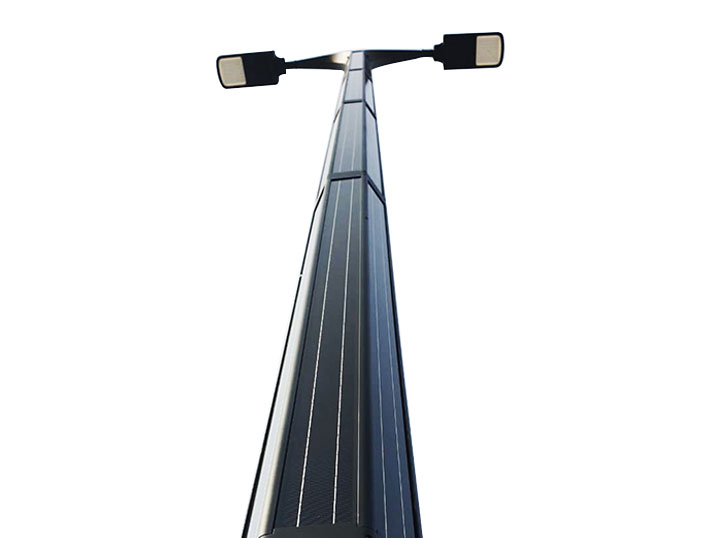

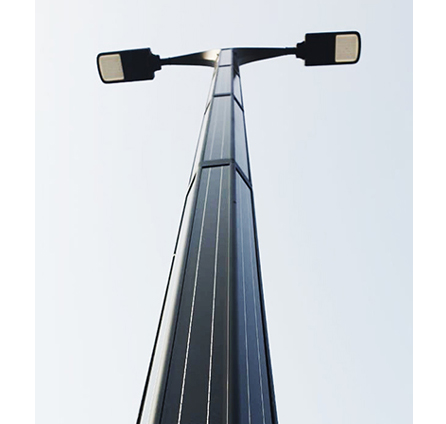

Vertical solar LED street light pole is an great innovation with latest technology. It adopts the vertical solar modules by surrounding the pole instead of regular solar panel installed on top. Comparing with traditional solar led street light, it has a very cosmetic appearance in the same look as traditional street light.

Each vertical solar module adopts 6 pieces of slim mono-crystalline solar panel with high efficiency up to 23% and more than 20 years lifetime. Each slim solar panel are 18V/36V and 6 pieces slim solars are connected together in parallel connection. Each vertical solar module contains two modules as master module which has 2 pairs of MC4 connectors and sub-module with 1 pair of MC4 connectors. As the big part of vertical solar led street light, the vertical solar module is designed based on the modular conception which is supposed to be installed on any shape and new or old poles as customers requre. And customer can freely combine different powers of solar panel according to the power consumption by series connection.

Description:
HOUSING Aluminium Die Casting
LED TYPE Philips Lumileds
AVERAGE LIFE 25 years
CONTROL SYSTEM Programmable MPPT Controller / Hybrid Controller / Wireless Intelligent Control
WORKING TEMPERATURE-20 °C ~ 65 °C
Technical Specifications:
Item Code Power CCTLuminous Flux Dimensions
XRAY-6000 40W 3000K / 4000K / 5000K / 6000K 6000lm 800 X 310 X 116 mm
XRAY-9000 60W 3000K / 4000K / 5000K / 6000K 9000lm 800 X 310 X 116 mm
XRAY-11200 80W 3000K / 4000K / 5000K / 6000K 11200lm 800 X 310 X 116 mm
XRAY-12600 90W 3000K / 4000K / 5000K / 6000K 12600lm 800 X 310 X 116 mm
XRAY-14000 100W 3000K / 4000K / 5000K / 6000K 14000lm 800 X 310 X 116 mm
XRAY-15400 110W 3000K / 4000K / 5000K / 6000K 15400lm 800 X 310 X 116 mm
