Mozart Panel Light

Submit an enquiry

FEATURES

Mozart trimless LED panel, with perfect appearance, flat and neatly surface, the light use high lumen led chips and support seamless installation. The luminaires emit efficient, glare-free light and offer innovative features. The top branded driver comes with Triac dim, 0-10V dim,DALI dim, Zigbee and Tuya Dimming. The ultra-slim profile fits seamlessly into any workplace. It is available in various installation ways: embedded into the ceiling, suspended with hanging wires, surface mounted in a concrete ceiling by using a surface mounting frame.

MOZART

Submit an enquiry
Description:
HOUSING Aluminum Sheet, Powder Coating, Luminaire Frame made of Extruded Aluminum, Powder-Coated
DIFFUSER Opal PMMA Diffuser UV-Stability, Non-Yellowing Material. Designed for Anti-Glaring.
COLOR AVAILABLE White
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum Reflector
VOLTAGE AC220-240V
WORKING TEMPERATURE -40C° ~ +50C°
UGR <22
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

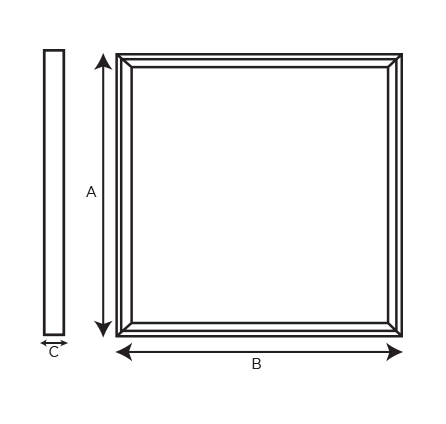

Item Code PowerLamp CCTLumen DIMENSIONS
PXR214125 25W LED 3000K, 4000K, 6000K 3000lm A595 X B595 X C14 mm
PXR214130
 30W LED 3000K, 4000K, 6000K 3600lm A595 X B595 X C14 mm
PXR214136 36W LED 3000K, 4000K, 6000K 4320lm A595 X B595 X C14 mm
PXR21414040W LED 3000K, 4000K, 6000K 4800lmA595 X B595 X C14 mm
PXR214145 45W LED 3000K, 4000K, 6000K 5400lm A595 X B595 X C14 mm
