Merlin Spot Light

Submit an enquiry

FEATURES

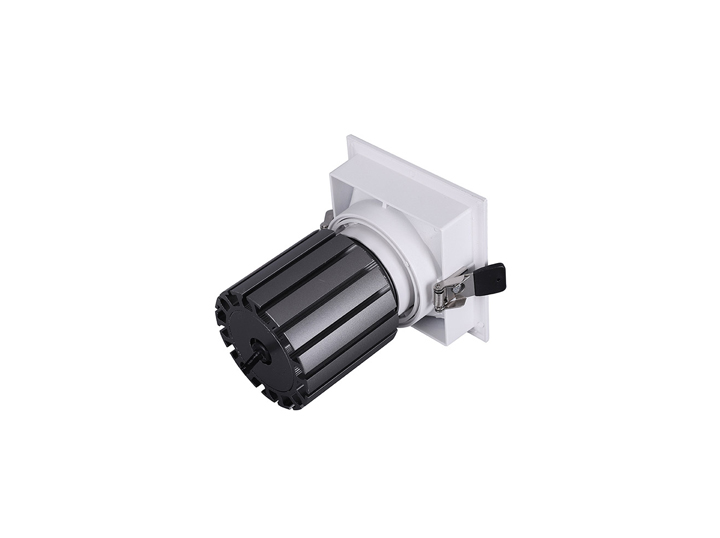

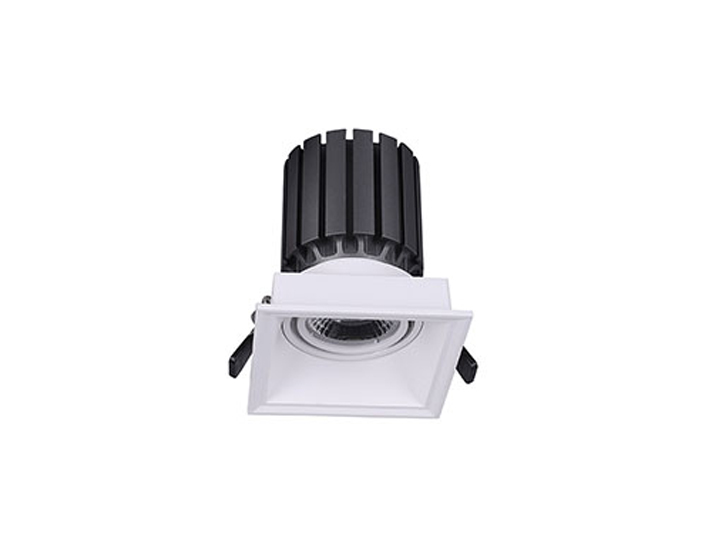

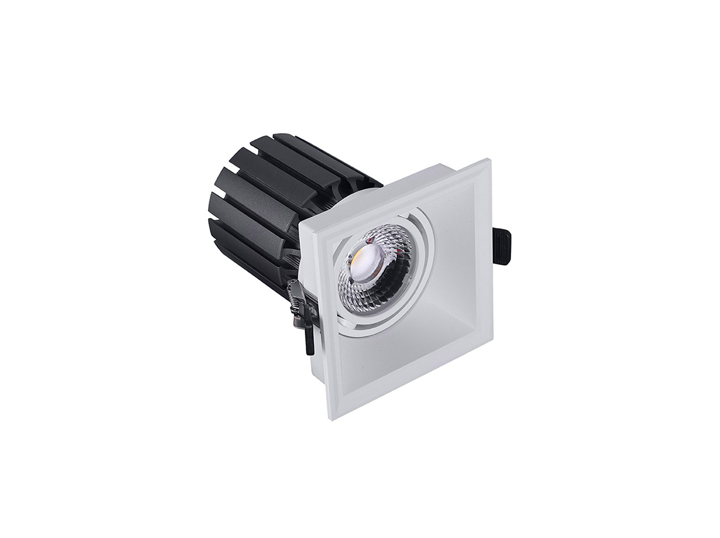

Merlin LED Spotlight is a mini and exquisite lamp with high light transmittance. It offers a very little size in many design styles, without forgetting about the functionality: all the range is characterized by the use high quality LED technology, so the result is a choice of accent light suitable for false ceiling, kitchen cabinet and not only. The possible applications are a multitude. This spotlights are all environmental friendly and very useful in a matter of energy and economical saving. The light result is bright, uniform and comfortable. Housing made by die cast aluminum powder coated with choice of RAL colors reflector.

MERLIN

Submit an enquiry
Description:
HOUSING Die-cast Aluminum
DIFFUSER PMMA
COLOR AVAILABLE White
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE
 -40C° ~ +50C°
UGR < 15
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

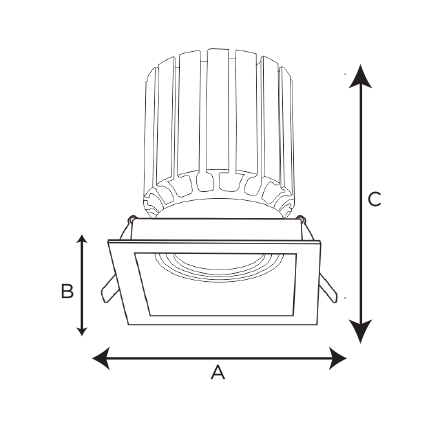

Item Code PowerLamp CCTLumen DIMENSIONS
GDXR2060107 07W LED 3000K, 4000K, 6000K 840lm A70 X B70 X C86 mm
GDXR2060110 10W LED 3000K, 4000K, 6000K 1200lm A90 X B90 X C105 mm
GDXR2060120
 20W LED 3000K, 4000K, 6000K 2400lm A109 X B109 X C115 mm
GDXR2060130
 30W LED 3000K, 4000K, 6000K 3600lm A135 X B135 X C123 mm

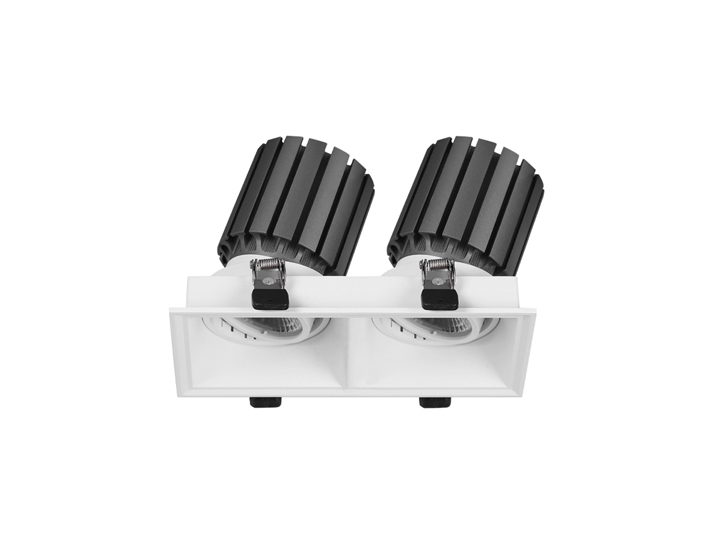

GDXR2060207
 2X7W LED 3000K, 4000K, 6000K 1680lm A125 X B70 X C86 mm
GDXR2060210
 2X10W LED 3000K, 4000K, 6000K 2400lm A165 X B90 X C105 mm
GDXR2060220
 2X20W LED 3000K, 4000K, 6000K 4800lm A221 X B111 X C125 mm
GDXR2060232
 2X32W LED 3000K, 4000K, 6000K 7680lm A276 X B138 X C123 mm
