Mario Street Light

Features

MARIO Street Light series luminaire is the ideal solution that fulfills the requirements of functional street lighting and residential areas, working with an outstanding heat dissipation and compacting system. Equipped with high-quality electrical components, a long lifetime is assured. Tool-free design and disconnector devices enable easy, safe, and minimal maintenance costs. Efficient systems also reduce energy consumption and create a more attractive urban living environment and visual comforts for public and residential areas. With its patented housing design and range of optics, the Legend series luminaire is also available with SPD Optional 10/15/20KV and Photocell NEMA sockets (3 pin and 7 pin). The finish is accessible in the RAL colors requested by the client.
Description:
HOUSING
ADC12 Die-cast Aluminum.
DIFFUSER  Tempered Glass
COLOR AVAILABLE  White
LIFESPAN
100,000 Hours (L90 B50)
REFLECTOR Aluminum Reflector
VOLTAGE AC100 - 277: 50-60Hz
WORKING TEMPERATURE -40C° ~ +55C°
LUMINOUS EFFICACY (lm/W) 140
UGR <22
MacAdam <3
Surge Protection
10KV
Weight (50W) 2.4 Kg
Weight (100W)
3.6 Kg
Weight (150W) 4.5 Kg
Weight (200-240W) 5.0 Kg
Nema Socket
Technical Specifications:

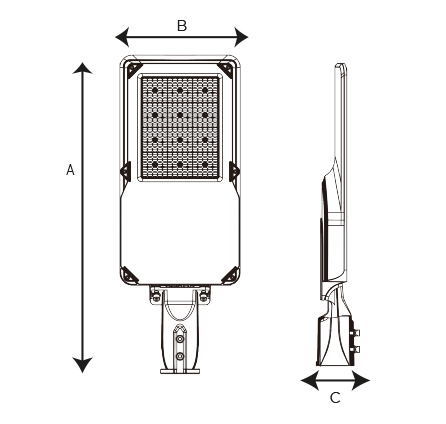

Item Code PowerLamp CCTLumen DIMENSIONS
STXR3120150 50W LED 3000K, 4000K, 6000K 7000lm A494 X B170 X C80 mm
STXR31201100 100W LED 3000K, 4000K, 6000K 14000lm A589 X B230 X C80 mm
STXR31201150 150W LED 3000K, 4000K, 6000K 21000lm A644 X B240 X C80 mm
STXR31201200 200W LED 3000K, 4000K, 6000K 28000lm A729 X B292 X C80 mm
STXR31201240 240W LED 3000K, 4000K, 6000K 33600lm A729 X B292 X C80 mm
