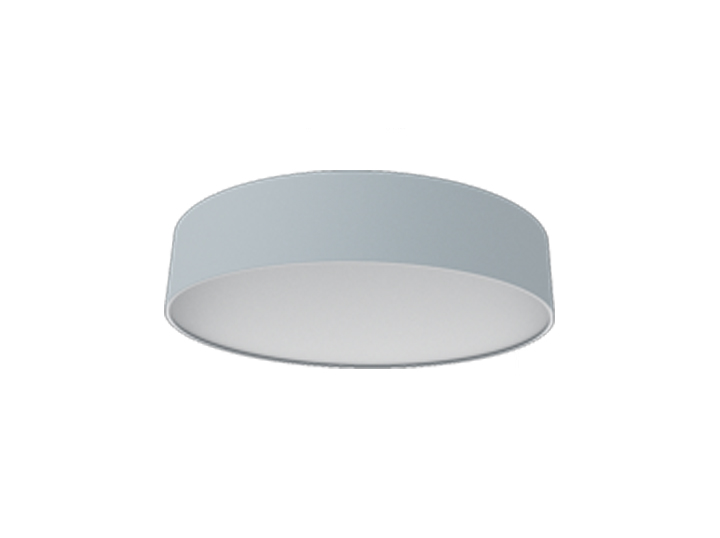

Luna I Wall External Light

Submit an enquiry

FEATURES

LED bulkhead with easy installation and best features. This bulkhead light adopts Die-casting aluminum body and 94-V0

fire-rated PC cover. it is also available as led emergency bulkhead, which is ideal for applications that require continuous light

even after a power outage. Modern IP44 rated led bulkhead also provide high bright lighting to stairway, lobby, reception,
corridors and building entrances.

LUNA I

Submit an enquiry
Description:
HOUSING Die-cast aluminum.
DIFFUSER
94-v0 Fire-rated PC Diffuser
COLOR AVAILABLE White, Black & Dark-Grey
LIFESPAN
 > 50,000 Hours (L90 B10)
REFLECTOR Aluminum Reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE -10C° ~ +60C°
UGR <22
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Power Factor 0.95
Technical Specifications:

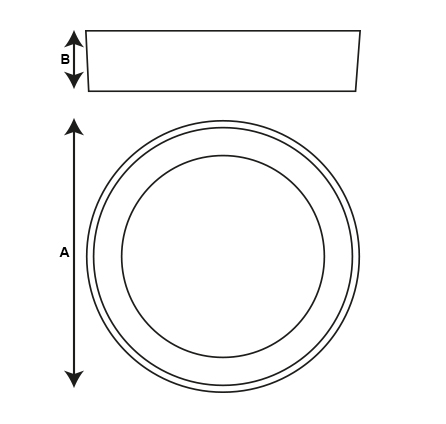

Item Code PowerLamp CCTLumen DIMENSIONS
WXR341510 10W LED 3000K, 4000K, 6000K 1200lm A115 X B55 mm
WXR341515 15W LED 3000K, 4000K, 6000K 1800lm A115 X B55 mm
WXR341520 20W LED 3000K, 4000K, 6000K 2400lm A220 X B58 mm
WXR341525 25W LED 3000K, 4000K, 6000K 3000lm A300 X B58 mm
WXR341530 30W LED 3000K, 4000K, 6000K 3600lm A300 X B58 mm
WXR341540 40W LED 3000K, 4000K, 6000K 4800lm A400 X B70 mm
WXR341550 50W LED 3000K, 4000K, 6000K 6000lm A400 X B70 mm
