| Description: | |
| HOUSING |
Anodized Extruded Aluminum Profile with end cap’s.
|
| DIFFUSER | Polycarbonate Cover |
| COLOR AVAILABLE |
White, Silver, Black
|
| LIFESPAN |
>>50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50) |
| REFLECTOR |
Aluminum Reflector |
| VOLTAGE | 24V DC, AC 220~240V |
| WORKING TEMPERATURE | -40C° ~ +50C° |
| UGR | <19 |
| LUMINOUS EFFICACY (lm/W) | 120 |
| MacAdam | <3 |
| Technical Specifications: | |||||

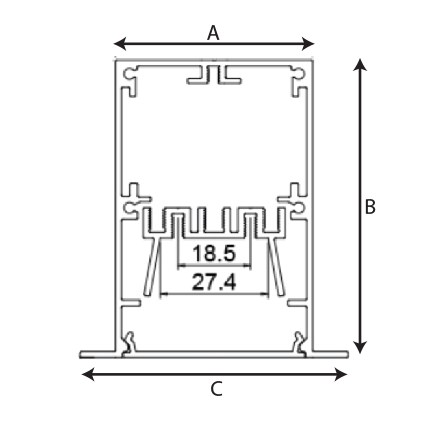

| Item Code | Power | Lamp | CCT | Lumen | DIMENSIONS |
|---|---|---|---|---|---|
| NA25657510 | 10W | LED | 3000K, 4000K, 6000K | 1200lm | A50 X B75 X C68 mm |
| NA25657520 |
20W | LED | 3000K, 4000K, 6000K | 2400lm | A50 X B75 X C68 mm |
| NA25657525 | 25W | LED | 3000K, 4000K, 6000K | 3000lm | A50 X B75 X C68 mm |
| NA25657530 |
30W | LED | 3000K, 4000K, 6000K | 3600lm | A50 X B75 X C68 mm |
| NA25657540 |
40W | LED | 3000K, 4000K, 6000K | 4800lm | A50 X B75 X C68 mm |
