Leslie Wall Washer Light

Submit an enquiry

FEATURES

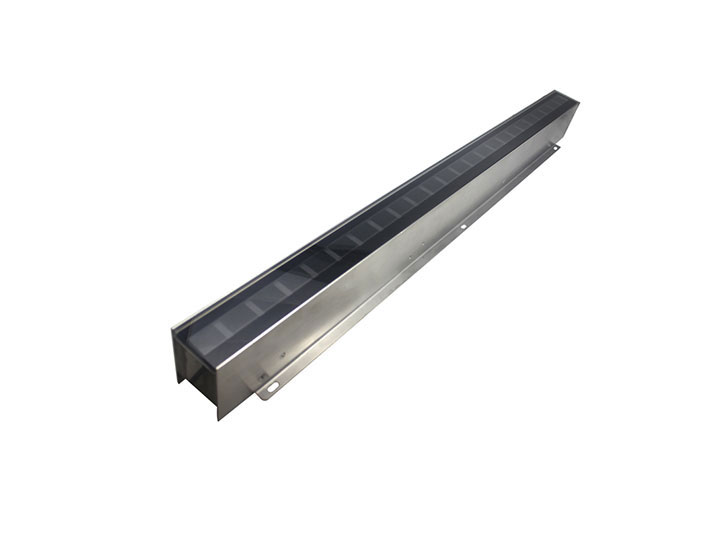

Leslie Wall Washer is 24VDC IP67 protected and IK10 linear LED luminaire for indoor and outdoor in-ground installation. It featured Entirely made of stainless steel 316Ti (resistant to corrosion) for lamp housing, built-in aluminum heat sink. Available in standard length 500mm or 1000mm, or customized length. Suitable for installation into roads, garden and parking lots. it is Anti skid toughened safety glass (ESG)-withstands loads of up to 2500KG. Delivered with male / female IP68 connectors.

LESLIE

Submit an enquiry
-40C° ~ +55C°
Description:
HOUSING
Entirely Made of Stainless Steel 316Ti 1.4571
DIFFUSER Safety Tempered Glass 10mm
COLOR AVAILABLE Black / Stainless Steel
LIFESPAN
 >100,000 Hours (L90 B50)
REFLECTOR PMMA Lense for LED
VOLTAGE DC24V
WORKING TEMPERATURE
LUMINOUS EFFICACY (lm/W) 100
UGR <16
MacAdam <3
Body
Double Layer Polyester Powder Paint Resistant to Corrosion and Salt Spray Fog
Gaskets
Silicone Rubber Gaskets
Technical Specifications:

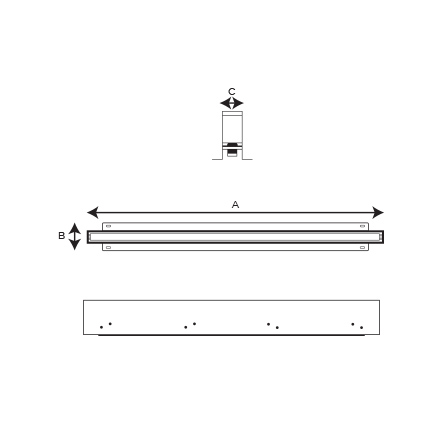

Item Code PowerLamp CCT Lumen DIMENSIONS
LLXR504012 12W LED 3000K, 4000K, 6000K 1200lm A500 X B95 X C65.4 mm
LLXR504024 24W LED 3000K, 4000K, 6000K 2400lm A500 X B95 X C65.4 mm
LLXR504035 35W LED 3000K, 4000K, 6000K 3500lm A1000 X B95 X C65.4 mm
LLXR504048 48W LED 3000K, 4000K, 6000K 4800lm A1000 X B95 X C65.4 mm
