| Description: | |
| HOUSING |
high-corrosion resistance extruded copper-free aluminum body with AISI 316 stainless trim.
|
| DIFFUSER | Tempered Safety Glass |
| COLOR AVAILABLE | Stainless-Steel Finish
|
| LIFESPAN |
100,000 Hours (L90 B50) |
| REFLECTOR | Glass Reflector |
| VOLTAGE | DC24V |
| WORKING TEMPERATURE | -40C° ~ +55C° |
| LUMINOUS EFFICACY (lm/W) | 100 |
| UGR | <22 |
| MacAdam | <3 |
| Body |
Double Layer Polyester Powder Paint Resistant to Corrosion and Salt Spray Fog
|
| Gaskets |
Silicone Rubber Gaskets
|
| Technical Specifications: | |||||

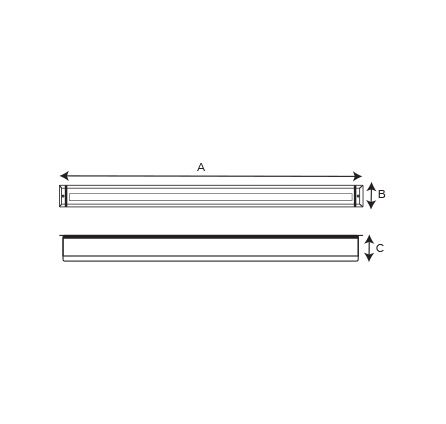

| Item Code | Power | Lamp | CCT | Lumen | DIMENSIONS |
|---|---|---|---|---|---|
| LLXR504509 | 09W | LED | 3000K, 4000K, 6000K | 900lm | A360 X B85 X C105 mm |
| LLXR504518 | 18W | LED | 3000K, 4000K, 6000K | 1800lm | A660 X B85 X C105 mm |
| LLXR504527 | 27W | LED | 3000K, 4000K, 6000K | 2700lm | A960 X B85 X C105 mm |
| LLXR504536 | 36W | LED | 3000K, 4000K, 6000K | 3600lm | A1260 X B85 X C105 mm |
