| Description: | |
| HOUSING |
high-corrosion resistance extruded copper-free aluminum body with AISI 316 stainless trim.
|
| DIFFUSER | Tempered Safety Glass |
| COLOR AVAILABLE | Aluminum Finish
|
| LIFESPAN |
>100,000 Hours (L90 B50) |
| REFLECTOR | Glass Reflector |
| VOLTAGE | AC100~240V/DC24V 50-60 HZ |
| WORKING TEMPERATURE | -40C° ~ +55C° |
| LUMINOUS EFFICACY (lm/W) | 100 |
| UGR | <22 |
| MacAdam | <3 |
| Body |
Double Layer Polyester Powder Paint Resistant to Corrosion and Salt Spray Fog
|
| Gaskets |
Silicone Rubber Gaskets
|
| Technical Specifications: | |||||

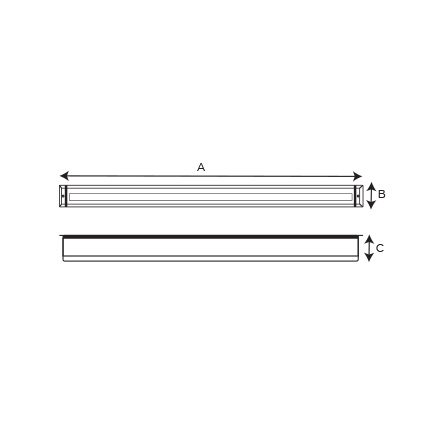

| Item Code | Power | Lamp | CCT | Lumen | DIMENSIONS |
|---|---|---|---|---|---|
| LLXR502021 | 21W | LED | 3000K, 4000K, 6000K | 2100lm | A500 X B90 X C70 mm |
| LLXR502036 | 36W | LED | 3000K, 4000K, 6000K | 3600lm | A1000 X B90 X C70 mm |
| LLXR502042 | 42W | LED | 3000K, 4000K, 6000K | 4200lm | A1000 X B90 X C70 mm |
