Karrie Wall Washer

Submit an enquiry

FEATURES

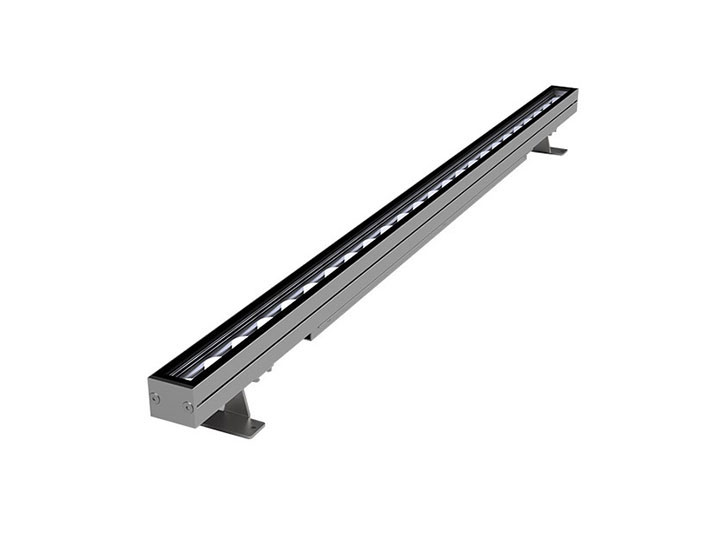

High power LED wall washer light, fashion and beautiful appearance, with the design of increasing heat dissipation to fully ensure the stability and long lifespan of LED fixture. The light body adopts 6063 aluminum alloy molding, surface with anodizing treatment, lampshade adopts high strength toughened glass, resist the impact and friction, has excellent rainwater clean ability. LED light source, high flus output, excellent consistency of light color, Constant current driver with PWM gray control installed inside, RGB gray level can reach to 65,536 degrees equally, make the dynamic light-dimmer softer and the color richer. 4, Powerful DMX512 interface adopts high reliable bus connect, all has the function of automatic addressing.

KARRIE

Submit an enquiry
Description:
HOUSING
Die-cast Aluminum Body.
DIFFUSER Tempered Safety Glass
COLOR AVAILABLE Black, White & Grey
LIFESPAN
 >50,000 Hours (L90 B10)
REFLECTOR PMMA Lens
VOLTAGE AC100~240V/ DC24V 50-60 HZ
WORKING TEMPERATURE -10C° ~ +50C°
LUMINOUS EFFICACY (lm/W) 100
UGR <16
MacAdam <3
Gaskets Silicone Rubber Gaskets
Technical Specifications:

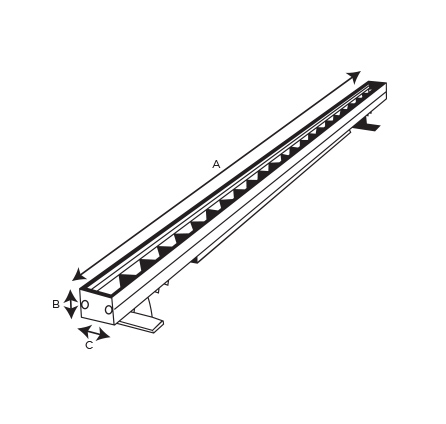

Item Code PowerLamp CCT Lumen DIMENSIONS
LLXR501009 9W LED 3000K, 4000K, 6000K 900lm A500 X B40 X C52 mm
LLXR501012 12W LED 3000K, 4000K, 6000K 1200lm A500 X B40 X C52 mm
LLXR501018 18W LED 3000K, 4000K, 6000K 1800lm A1000 X B40 X C52 mm
LLXR501024 24W LED 3000K, 4000K, 6000K 2400lm A1000 X B40 X C52 mm
LLXR501036 36W LED 3000K, 4000K, 6000K 3600lm A1000 X B40 X C52 mm
