KAI

FEATURES

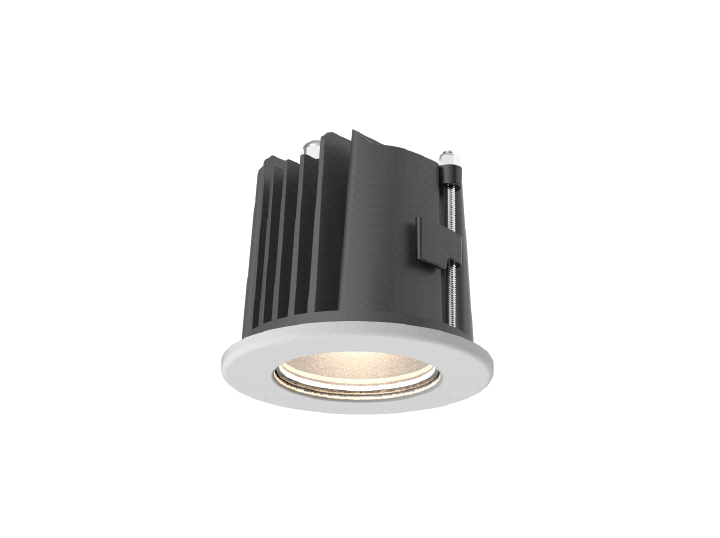

 Kai LED Spotlight is recessed aluminum spotlight come as IP66 spotlight available in white. This spotlight design has been finished with a special paint treatment to ensure an extra-long lifespan and making it suitable for use under eaves and in water areas such as showers. It features semi anti-glare with a deep positioning and can be installed under insulation using an ICD driver, great thermal management, IP66 waterproof with high protection level, which offers a wider application area.
Description:
HOUSING Die-cast Aluminum, Powder-coated
DIFFUSER Opal Polycarbonate/Frosted Glass
COLOR AVAILABLE White/Black
LIFESPAN
>50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
Aluminum reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE
-40C° ~ +50C°
UGR < 22
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

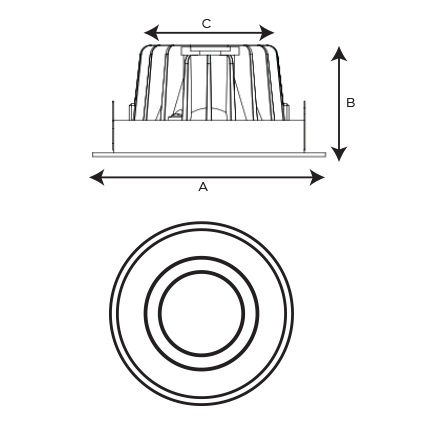

Item Code PowerLamp CCTLumen DIMENSIONS
DXR171007 07W LED 3000K, 4000K, 6000K 840lm A100 X B85 X C80 mm
DXR171012 12W LED 3000K, 4000K, 6000K 1440lm A130 X B95 X C120 mm
DXR171015 15W LED 3000K, 4000K, 6000K 1800lm A160 X B100 X C150 mm
DXR171018
18W LED 3000K, 4000K, 6000K 2160lm A160 X B100 X C150 mm
DXR171020 20W LED 3000K, 4000K, 6000K 2400lm A190 X B110 X C180 mm
