Jelly LED Flood

Submit an enquiry

FEATURES

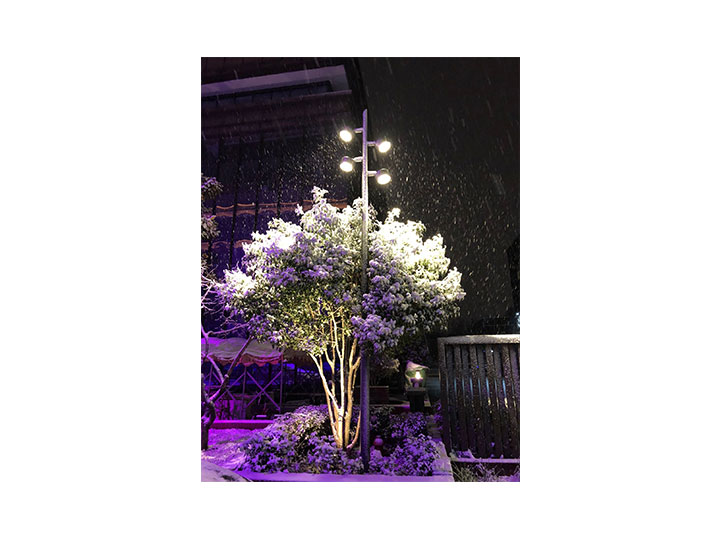

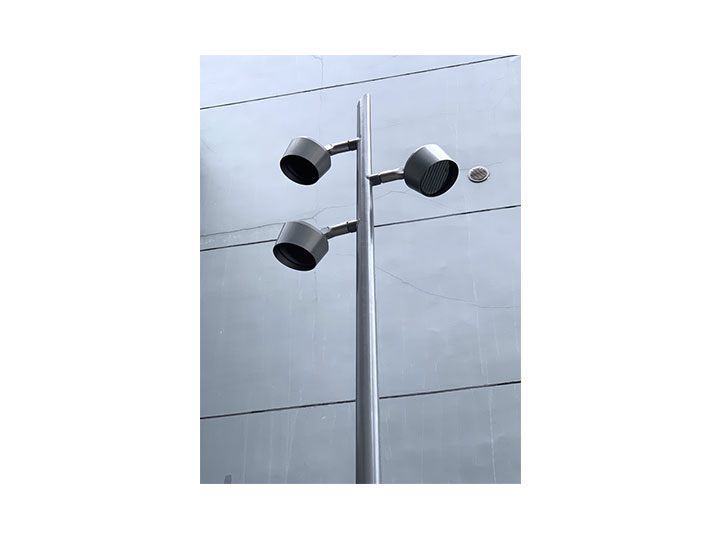

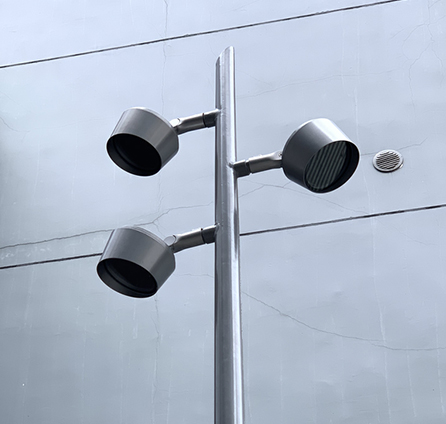

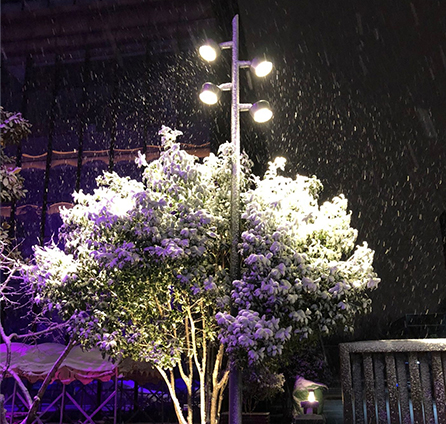

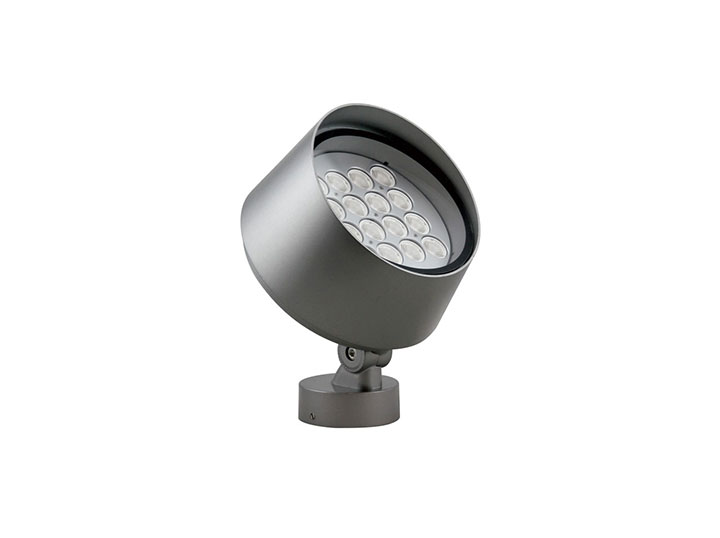

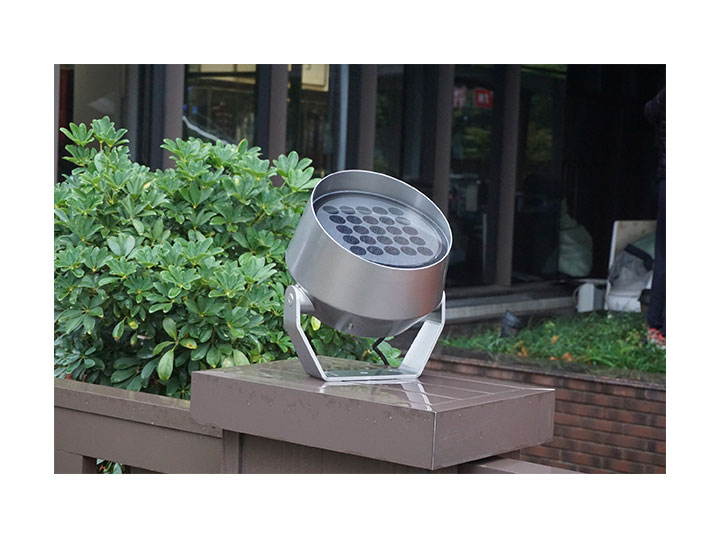

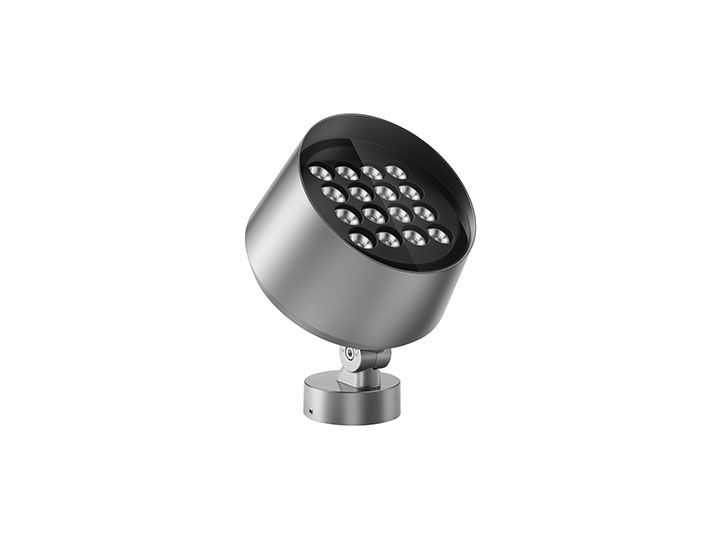

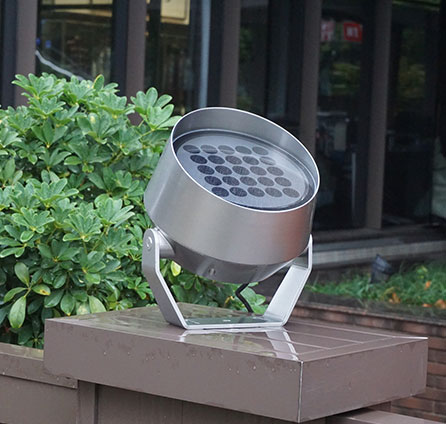

Jelly LED Flood Light is an IP66-rated luminaire for lighting landscapes, trees, columns, monuments, and architectural details. It has numerous options, including optics for flood or accent lighting, color temperatures and a choice of RGB, RGBW or RGBA color mixing as well as various accessories for bracket installation, spread lenses, and controls. The luminaire also has an anti-corrosion option for use in harsh, chemical, or coastal environments.

JELLY

Submit an enquiry
Description:
HOUSING Die-cast Aluminum with anti-corrosive treatment, Polyester powder coating
DIFFUSER Tempered Glass
COLOR AVAILABLE Grey
LIFESPAN
 > 100,000 Hours (L90 B50)
REFLECTOR Aluminum Reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE -40C° ~ +55C°
UGR <22
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

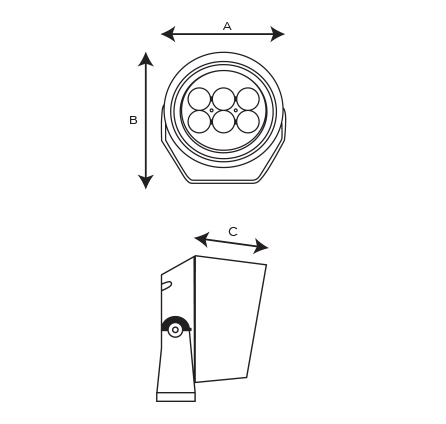

Item Code PowerLamp CCTLumen DIMENSIONS
FXR307015 15W LED 3000K, 4000K, 6000K 1800 lm A158 X B173 X C133 mm
FXR307022 22W LED 3000K, 4000K, 6000K 2640 lm A158 X B173 X C133 mm
FXR307030 30W LED 3000K, 4000K, 6000K 3600 lm A184 X B204 X C141 mm
FXR307035 35W LED 3000K, 4000K, 6000K 4200 lm A184 X B204 X C141 mm
FXR307045 45W LED 3000K, 4000K, 6000K 5400 lm A184 X B204 X C141 mm
FXR307060 60W LED 3000K, 4000K, 6000K 7200 lm A184 X B204 X C141 mm
FXR307075 75W LED 3000K, 4000K, 6000K 9000 lm A260 X B303 X C275 mm
FXR3070100 100W LED 3000K, 4000K, 6000K 12000 lm A260 X B303 X C275 mm
FXR3070150 150W LED 3000K, 4000K, 6000K 18000lm A260 X B303 X C275 mm
