Hanabi Wall Washer Light

Submit an enquiry

FEATURES

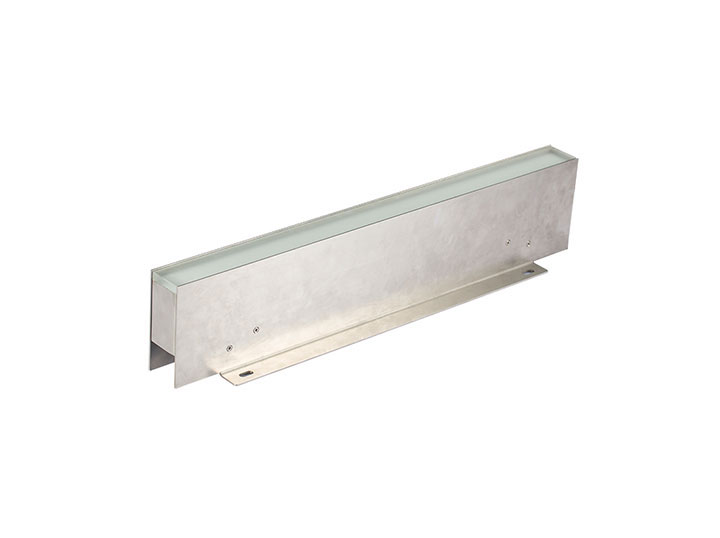

Hanabi Wall Washer is 24VDC IP67 protected and IK10 linear LED luminaire for indoor and outdoor in-ground installation. It featured Entirely made of stainless steel 316Ti (resistant to corrosion) for lamp housing, built-in aluminum heat sink, frameless design and 15mm thickness frosted tempered glass. Frameless design for two ends of linear luminaire enables Seamless splice installation of numerous fixtures possible. Available in standard length 500mm or 1000mm, or customized length. Suitable for installation into roads, garden and parking lots. it is Anti skid toughened safety glass (ESG)-withstands loads of up to 2500KG. Delivered with male / female IP68 connectors.

HANABI

Submit an enquiry
Description:
HOUSING
Stainless Steel AISI 316
DIFFUSER Safety Tempered Glass
COLOR AVAILABLE Stainless-Steel Finish
LIFESPAN
 >100,000 Hours (L90 B50)
REFLECTOR Glass Reflector
VOLTAGE DC24V
WORKING TEMPERATURE -40C° ~ +55C°
LUMINOUS EFFICACY (lm/W) 100
UGR <15
MacAdam <3
Body
Double Layer Polyester Powder Paint Resistant to Corrosion and Salt Spray Fog
Gaskets
Silicone Rubber Gaskets
Technical Specifications:

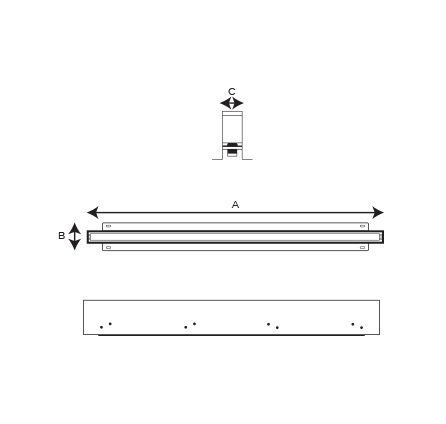

Item Code PowerLamp CCTLumenDimensions
LLXR50300606W LED 3000K, 4000K, 6000K 600lm A500 X B87 X C41 mm
LLXR503012 12W LED 3000K, 4000K, 6000K 1200lm A1000 X B87 X C41 mm
