FEATURES

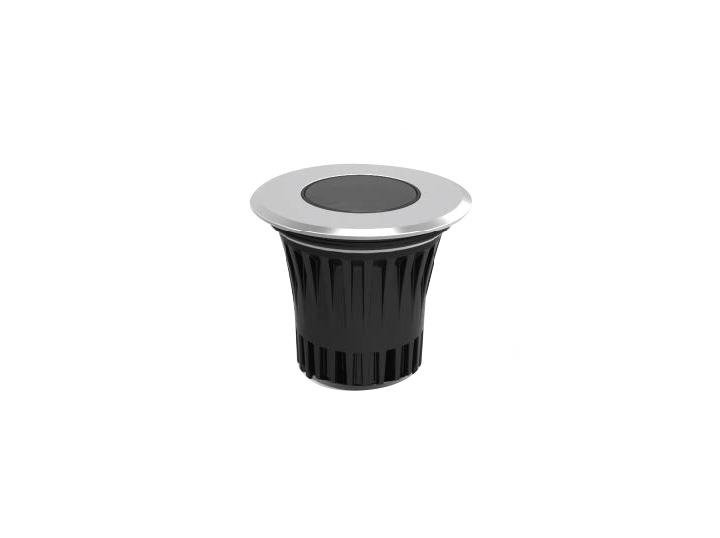

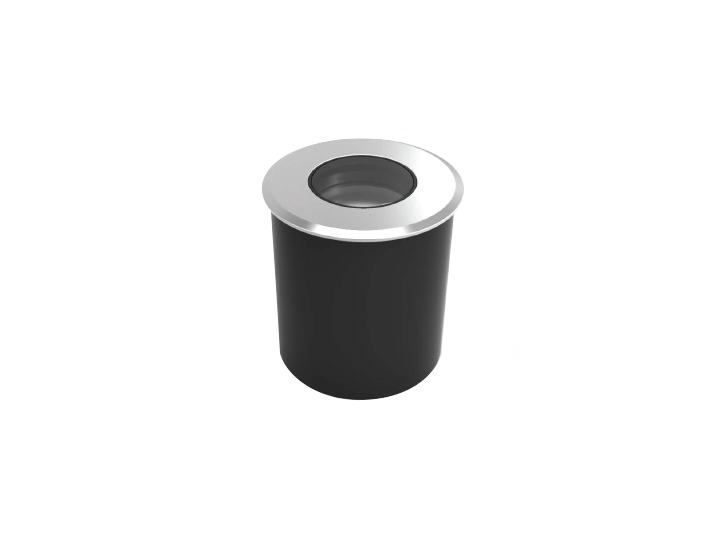

The LED Buried Light is an outdoor buried light fixture. It has monochrome or RGB LEDs that can be controlled by DMX. This product is very suitable for lighting on the road and has a decorative color-washing effect. This is also a great replacement for urban furniture due to its IP68 protection rating.

GRAPHE

Submit an enquiry
Description:
HOUSING
Die-cast Aluminum, AISI 316 Stainless Steel trim and screws.
DIFFUSER Tempered Safety Glass
COLOR AVAILABLE Black, Stainless Steel
LIFESPAN
 100,000 Hours (L90 B50)
REFLECTOR Transparent Special Optics
VOLTAGE AC100~240V/DC24V 50-60 HZ
WORKING TEMPERATURE -40C° ~ +55C°
LUMINOUS EFFICACY (lm/W) 120
UGR <15
MacAdam <3
Accessories Polycarbonate Recessed Box
Marine Resistance
Technical Specifications:

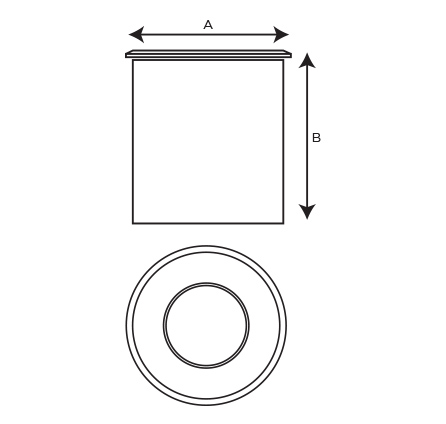

Item Code PowerLamp CCTLumen DIMENSIONS
UPXR657205 05W LED 3000K, 4000K, 6000K 600lm A90 X B96 mm
UPXR657210 10W LED 3000K, 4000K, 6000K 1200lm A90 X B96 mm
UPXR657215 15W LED 3000K, 4000K, 6000K 1500lm A90 X B96 mm
