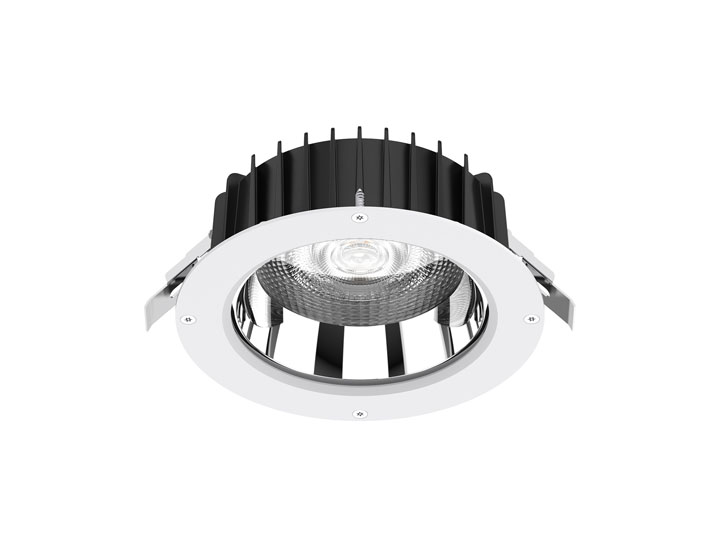

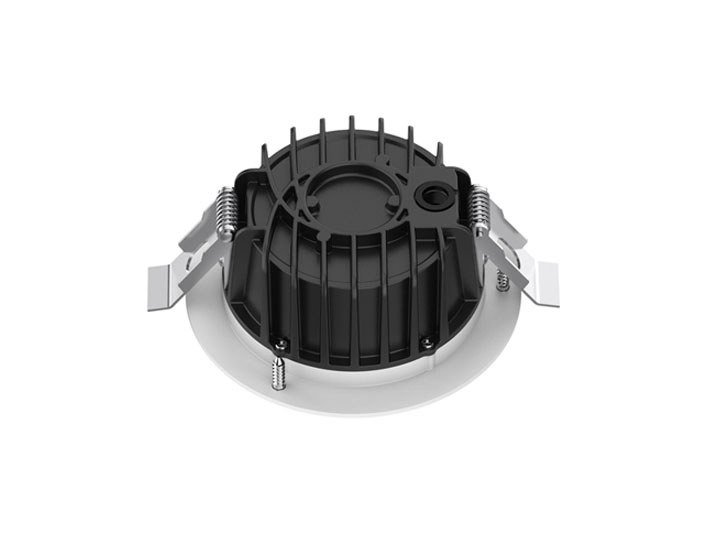

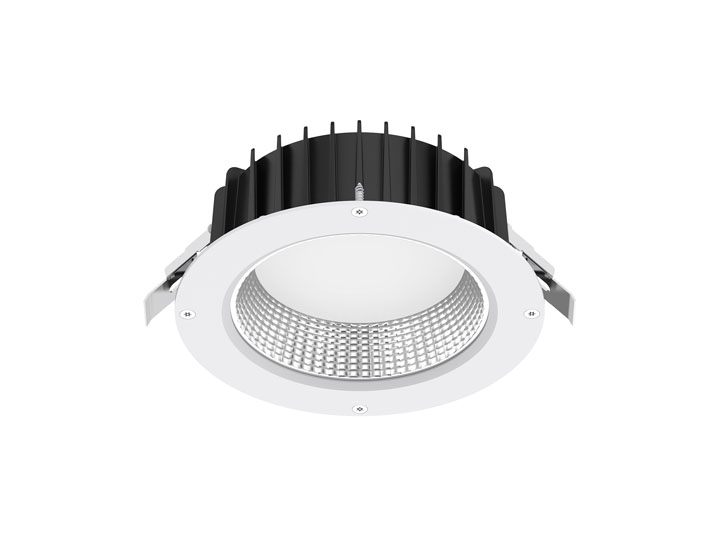

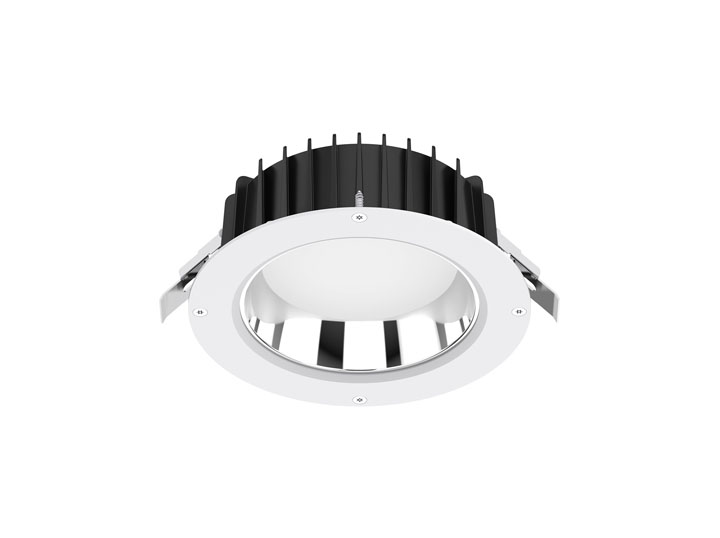

Granger LED Down Light

Submit an enquiry

FEATURES

Granger downlight with traditional deep reflector which provides a perfect combination of high lighting efficiency, comfortable lighting and low glare design, without compromising on lighting performance (color rendering and color uniformity). Two kinds of light source COB and SMD for option. ADC12 aluminum housing provides a great thermal management, IP65 waterproof with high protection level, which offers a wider application area.

GRANGER

Submit an enquiry
Description:
HOUSING Luminaire Body of Die-cast aluminum Heatsink Form a Compact Unit, White Powdered Coated
DIFFUSER Opal / PMMA / Polycarbonate
COLOR AVAILABLE White
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE -40C° ~ +50C°
UGR  <19, <22
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

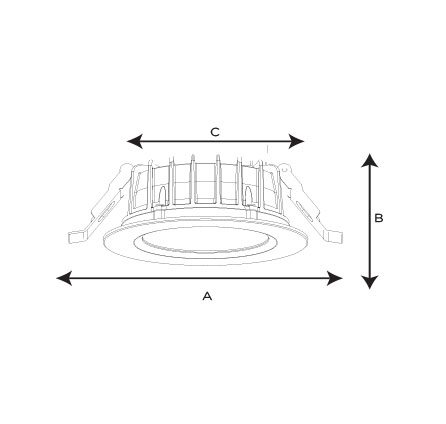

Item Code PowerLamp CCTLumen DIMENSIONS
DXR177510 10W LED 3000K, 4000K, 6000K 1200lm A110 X B51 X C90 mm
DXR177513
 13W LED 3000K, 4000K, 6000K 1560lm A110 X B51 X C90 mm
DXR177518
 18W LED 3000K, 4000K, 6000K 2160lm A150 X B64 X C125 mm
DXR177525 25W LED 3000K, 4000K, 6000K 3000lm A172 X B69 X C125 mm
DXR177530
 30W LED 3000K, 4000K, 6000K 3600lm A172 X B69 X C125 mm
DXR177535
 35W LED 3000K, 4000K, 6000K 4200lm A235 X B81 X C200 mm
DXR179840 40W LED 3000K, 4000K, 6000K 4800lm A235 X B81 X C200 mm
