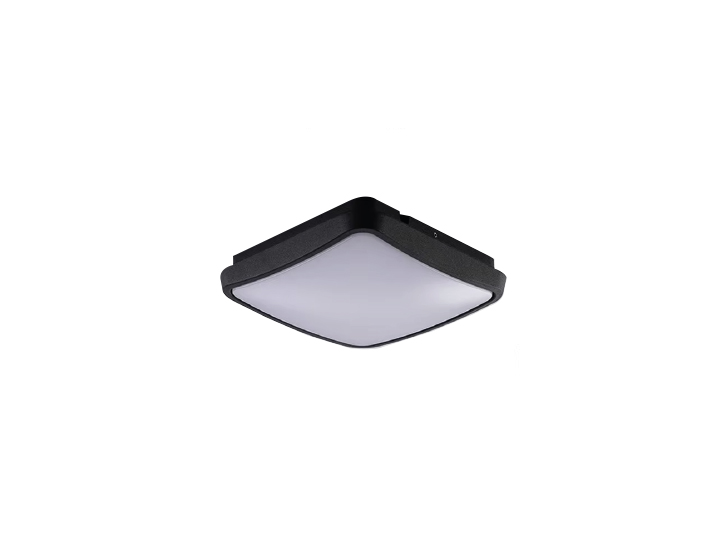

Frame II Celling Light

Submit an enquiry

FEATURES

LED Fixture for illuminating common or outdoor areas near homes, is suitable for indoor and outdoor areas, with ceiling or wall installation where more intense and diused lighting is required.It is particularly suited for lighting stairs, building entrance areas, corridors in shopping malls, shops, hotels & restaurants. Possibility of customizing it by changing the type of light source. The wide range of Mazda LED light sources with LED and CFL sources or even to transform it into emergency lighting.

FRAME II

Submit an enquiry
Description:
HOUSING Die-cast Aluminum.
DIFFUSER
94-v0 Fire-rated PC Diffuser (Clear/Frosted)
COLOR AVAILABLE
Black, White & Dark Grey
LIFESPAN
 > 50,000 Hours (L90 B10)
REFLECTOR Aluminum Reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE -10C° ~ +55C°
UGR <22
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

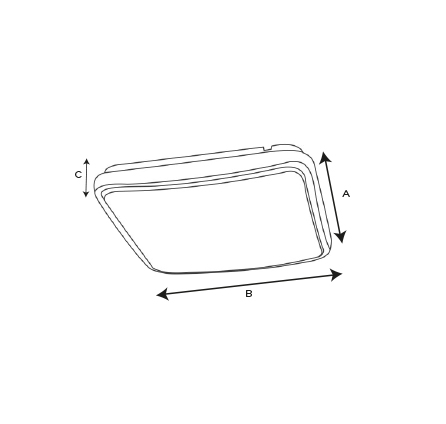

Item Code PowerLamp CCTLumen DIMENSIONS
WSXR374024 24W LED 3000K, 4000K, 6000K 2880lm A220 X B220 X C50 mm
WSXR374036 36W LED 3000K, 4000K, 6000K 4320 lm A320 X B320 X C50 mm
