FOCUS II

FEATURES

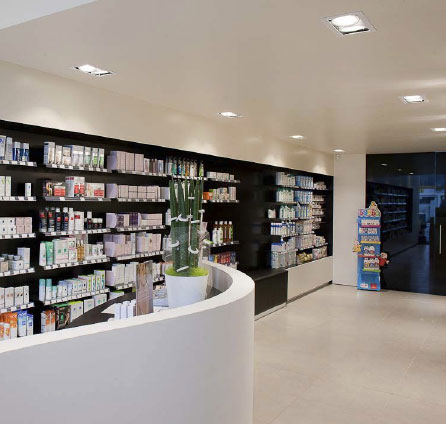

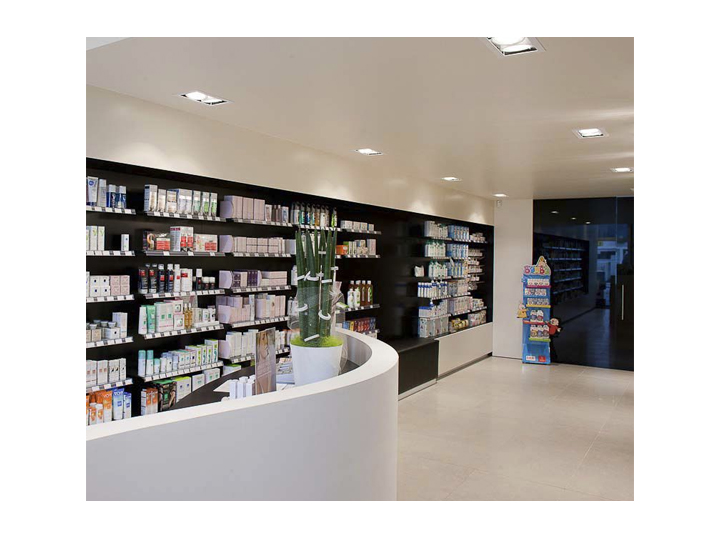

Attractive downlight for prestigious lighting of offices, banks, hotels, restaurants, corridors, foyers, sales, exhibition and conference rooms, as well as residential areas. It is well integrated LED chip and dimmable Phase cut-off or DALI driver.

Description:
HOUSING
Luminaire body of die-cast aluminum, white, powder-coated. Luminaire body
and heat sink form a compact unit
DIFFUSER Clear tempered glass
COLOR AVAILABLE White, Black and Silver
DIFFERENT GLASS Transparent, Full frosted and Semi-frosted glass
LIGHT SOURCE CREE, SAMSUNG ,BRIDGLUX, PHILIPS
VOLTAGE 100-240V/50-60Hz
Technical Specifications:
Item Code LumenWatt Im/W Dimensions

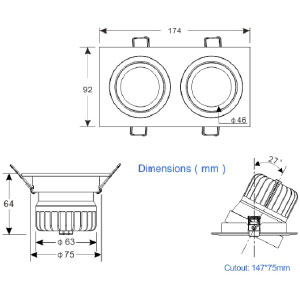

GDXR102007 1680lm 7W 120 174 X 92 * H64 mm
GDXR102012 2880lm 12W 120 230 X 120 * H80 mm

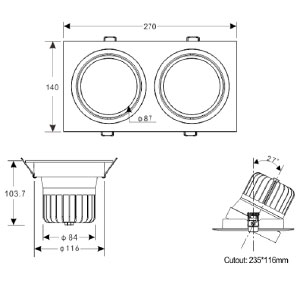

GDXR102020 4800lm 20W 120 270 X 140 * H96 mm
GDXR102030 7200lm 30W 120 320 X 160 * H109 mm
GDXR102040 9600lm 40W 120 360 X 180 * H132 mm
