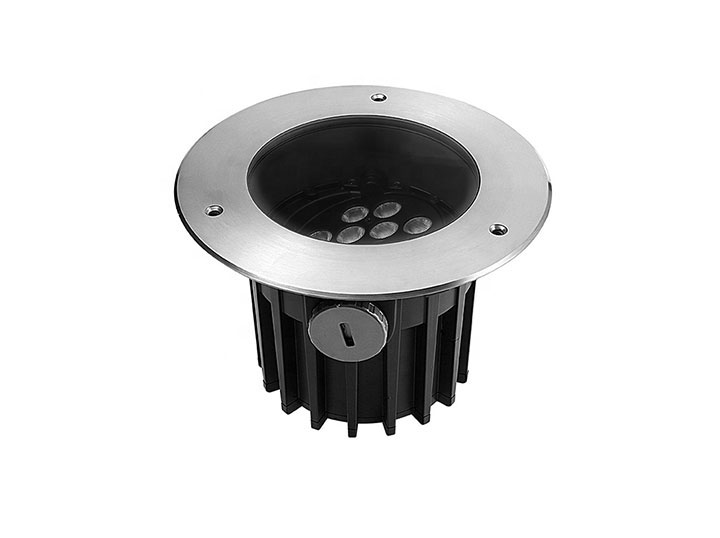

Esme Up Light

FEATURES

Luminaire for floor/ground and ceiling installation, fixed, single adjustable versions for different applications, lighting head can be mechanically adjusted without opening the luminaire, high level of flexibility in terms of lighting control, very low glare rating with the deep recessed lighting head, die-casting aluminum body, 316L SS outer trim, 8mm thick tempered glass, very low thermal build-up at the diffuser end, integrated driver, optional versions available with frosted diffuser and 24Vdc models.

Description:
HOUSING
Die-cast Aluminum, AISI 316 Stainless Steel trim and screws.
DIFFUSER Tempered Safety Glass
COLOR AVAILABLE Black, Stainless Steel
LIFESPAN
> 100,000 Hours (L90 B50)
REFLECTOR Special optics PMMA
VOLTAGE AC100~240V/ DC24V 50-60 HZ
WORKING TEMPERATURE -40C° ~ +55C°
UGR <16~21
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Accessories Polycarbonate Recessed Box
Technical Specifications:

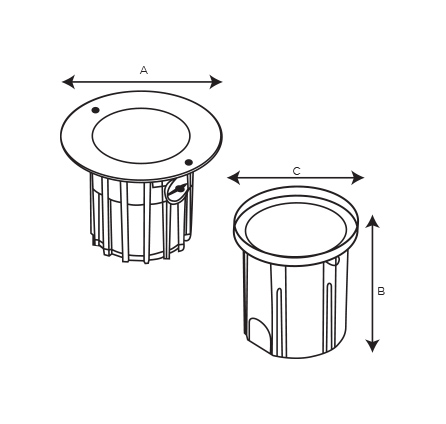

Item Code PowerLamp CCTLumen DIMENSIONS
UPXR657012 12W LED 3000K, 4000K, 6000K 1440lm A160 X B156 X C147 mm
UPXR657018 18W LED 3000K, 4000K, 6000K 2160lm
A180 X B168 X C165 mm
UPXR657024 24W LED 3000K, 4000K, 6000K 2880lm A210 X B194 X C193 mm
UPXR657036 36W LED 3000K, 4000K, 6000K 4320lm A250 X B212 X C223 mm
UPXR657050 50W LED 3000K, 4000K, 6000K 6000lm A250 X B212 X C223 mm
