FEATURES

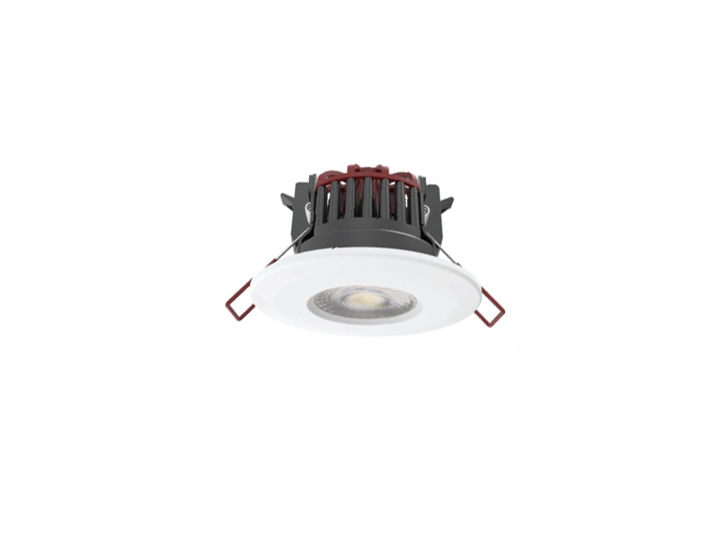

Elli LED Spot Light is a spotlight for indoor use with a different beam angle tilt to direct the light to where you need it. Well-suited for ceilings and as shop lighting. Made of die-cast powder-coated aluminium. Dimmable with phase control dimmer or DALI. Tool-free installation and possibility for looping.

ELLI

Submit an enquiry
Description:
HOUSING Aluminum, Iron and Plastic
DIFFUSER Polycarbonate or PMMA Plastic Lens
COLOR AVAILABLE White
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE
 -25C° ~ +40C°
UGR < 22
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Power Factor 0.95
Technical Specifications:

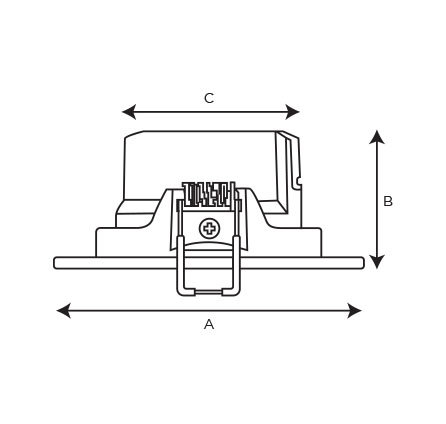

Item Code PowerLamp CCTLumen DIMENSIONS
SXR182308 08W LED 3000K, 4000K, 6000K 960lm A88 X B54 X C60 mm
SXR182310
 10W LED 3000K, 4000K, 6000K 1200lm A88 X B54 X C60 mm
SXR182313 13W LED 3000K, 4000K, 6000K 1560lm A88 X B54 X C60 mm
