Edison SS LED Spot Light

Submit an enquiry

FEATURES

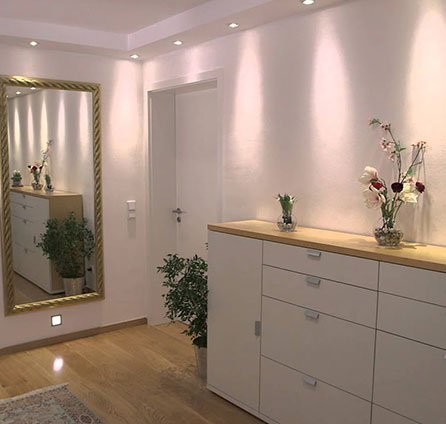

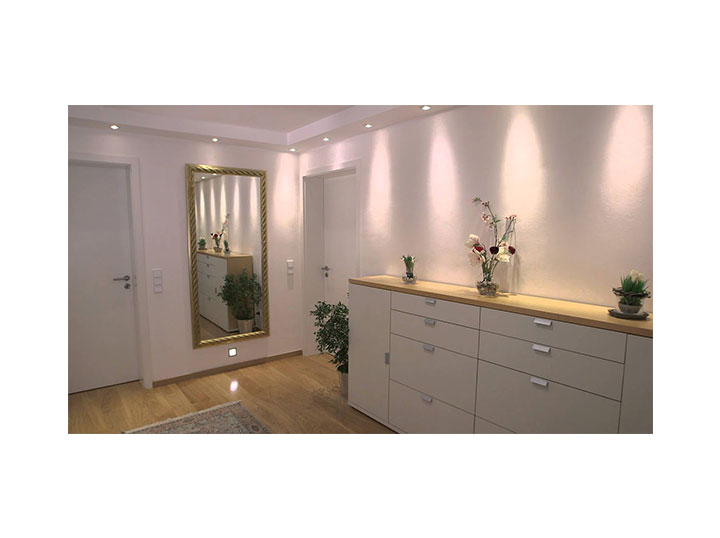

Edison LED Spotlight is a spotlight for indoor use with a three different beam angle tilt to direct the light to where you need it. Well-suited for ceilings and as shop lighting. Made of die-cast powder-coated aluminum. Dimmable with phase control dimmer or DALI. Tool-free installation and possibility for looping.

EDISON SS

Submit an enquiry
Description:
HOUSING Luminaire Body of Die-cast Aluminum, White, Powder-coated and Heat Sink Form a Compact Unit
DIFFUSER Clear Tempered Glass
COLOR AVAILABLE White
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE
 -40C° ~ +50C°
UGR <22
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

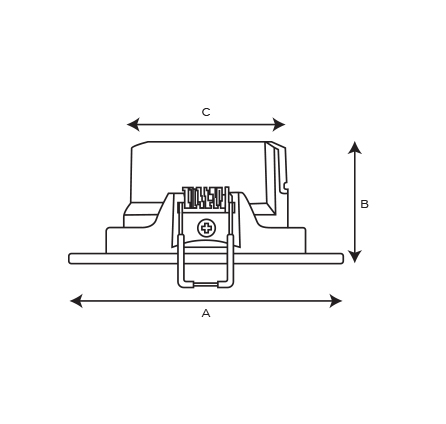

Item Code PowerLamp CCTLumen Dimensions
SXR181007 07W LED 3000K, 4000K, 6000K 840lm A95 X B55 X C75 mm
SXR181010 10W LED 3000K, 4000K, 6000K 1200lm A95 X B55 X C75 mm
SXR181012 12W LED 3000K, 4000K, 6000K 1440lm A95 X B55 X C75 mm
