Edison DL LED Down Light

Submit an enquiry

FEATURES

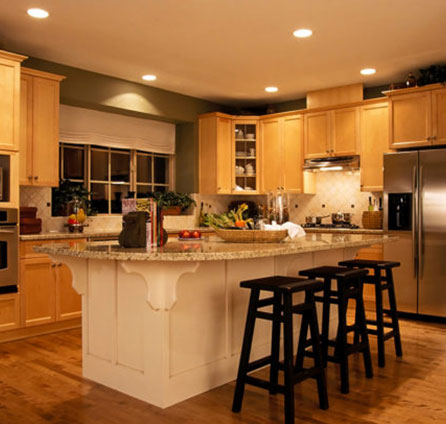

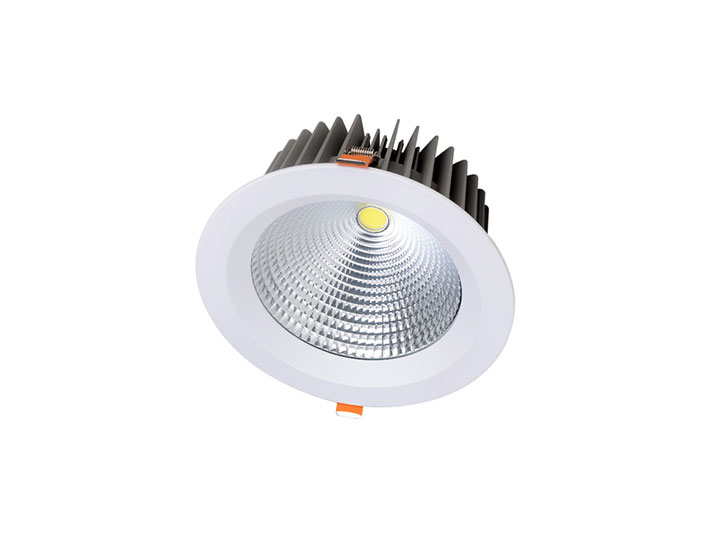

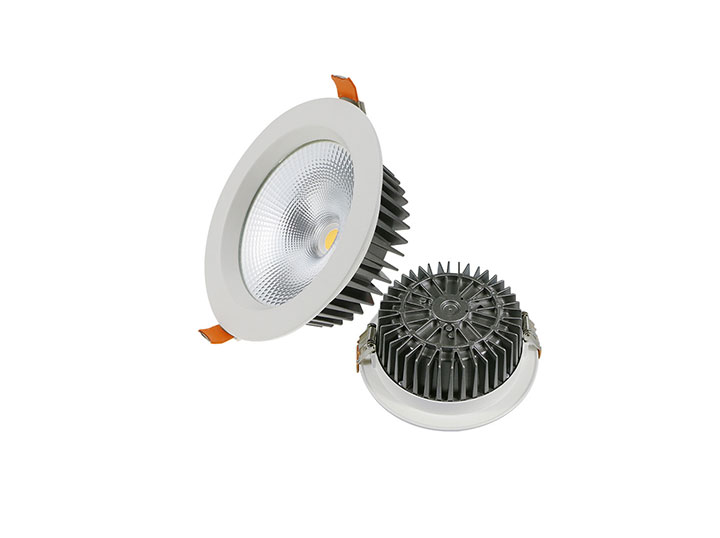

Edison LED Down Light Attractive exclusive downlight for indoor or outdoor use, particularly well-suited to basic lighting due to its very low unified glare rating. The light efficiency reaches up to 120lm/w IP65 with perfect accent lighting performance. That makes it become the priority selected product for commercial lighting. Great cooling fins heat sink design increases the interface between heat sink and air, which makes the heat dissipating performance outstanding and extend the service life of the downlight. Suitable for commercial and residential applications like office, supermarket, shop, school, hotel, restaurant, workshop, etc.

EDISON DL

Submit an enquiry
Description:
HOUSING Hard Die-cast Aluminum Body, White Powder-coated
DIFFUSER Tempered, Frosted Glass
COLOR AVAILABLE White
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE
 -40C° ~ +50C°
UGR <22
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

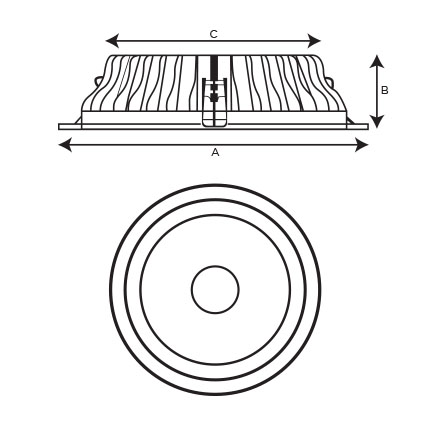

Item Code PowerLamp CCTLumen DIMENSIONS
DXR172015 15W LED 3000K, 4000K, 6000K 1800lm A159 X B60 X C145 mm
DXR172020 20W LED 3000K, 4000K, 6000K 2400lm A190 X B60 X C170 mm
DXR172025 25W LED 3000K, 4000K, 6000K 3000lm A190 X B60 X C170 mm
DXR172030 30W LED 3000K, 4000K, 6000K 3600lm A230 X B72 X C205 mm
DXR172035 35W LED 3000K, 4000K, 6000K 4200lm A230 X B72 X C205 mm
DXR172040 40W LED 3000K, 4000K, 6000K 4800lm A230 X B72 X C205 mm
DXR172045 45W LED 3000K, 4000K, 6000K 5400lm A230 X B72 X C205 mm
DXR172050
 50W LED 3000K, 4000K, 6000K 6000lm A230 X B72 X C205 mm
