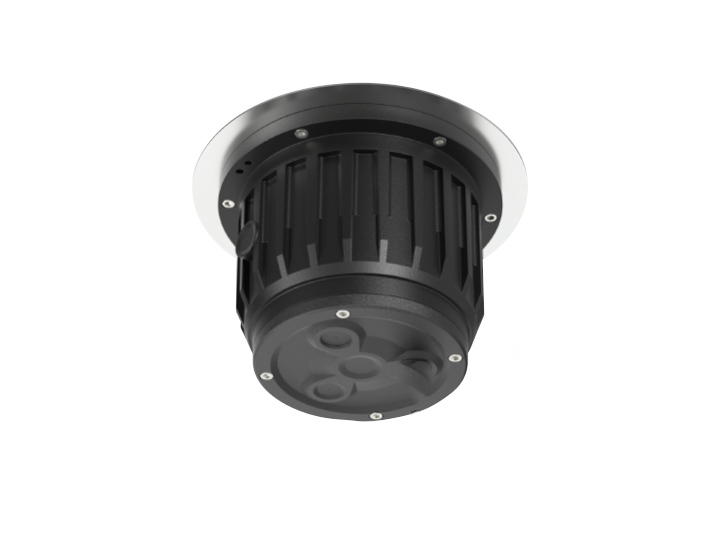

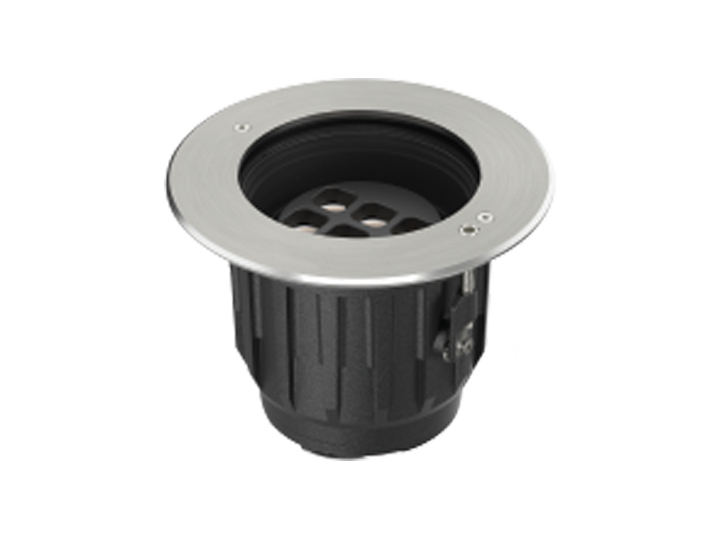

Draco Mini Up Light

FEATURES

Draco Mini Luminaire for floor/ground and ceiling installation, fixed, single adjustable versions for different applications, lighting head can be mechanically adjusted without opening the luminaire, high level of flexibility in terms of lighting control,very low glare rating with the deep recessed lighting head, die-cast aluminum body, 316L SS outer trim, 8mm thick tempered glass, very low thermal build-up at the diffuser end, integrated driver, optional versions available with frosted diffuser and 24Vdc models.The light head is adjustable from -25°~+25°.Highly resitance in marine environment.

DRACO MINI

Submit an enquiry
Description:
HOUSING
Die-cast aluminum, AISI 316 stainless steel trim, and screws.
DIFFUSER Tempered Safety Glass
COLOR AVAILABLE Black, Stainless Steel, and Light Grey
LIFESPAN
100,000 Hours (L90 B50)
REFLECTOR Special optics PMMA
VOLTAGE AC100~240V/DC24V 50-60 HZ
WORKING TEMPERATURE -40C° ~ +55C°
UGR <16~21
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Accessories Polycarbonate Recessed Box
Technical Specifications:

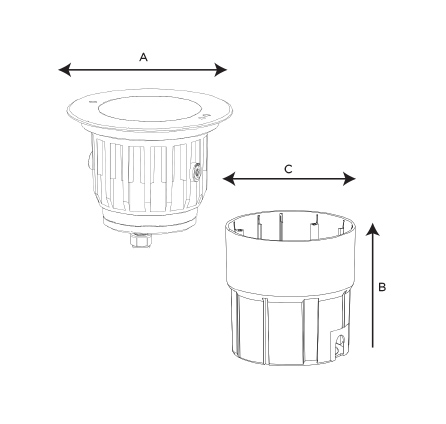

Item Code PowerLamp CCTLumen DIMENSIONS
UPXR656803 03W LED 3000K, 4000K, 6000K 360lm A95 X B150 X C90 mm
UPXR656806 06W LED 3000K, 4000K, 6000K 720lm A95 X B150 X C90 mm
UPXR656809 09W LED 3000K, 4000K, 6000K 1080lm A130 X B165 X C115 mm
