Dotty Up Light

Submit an enquiry

FEATURES

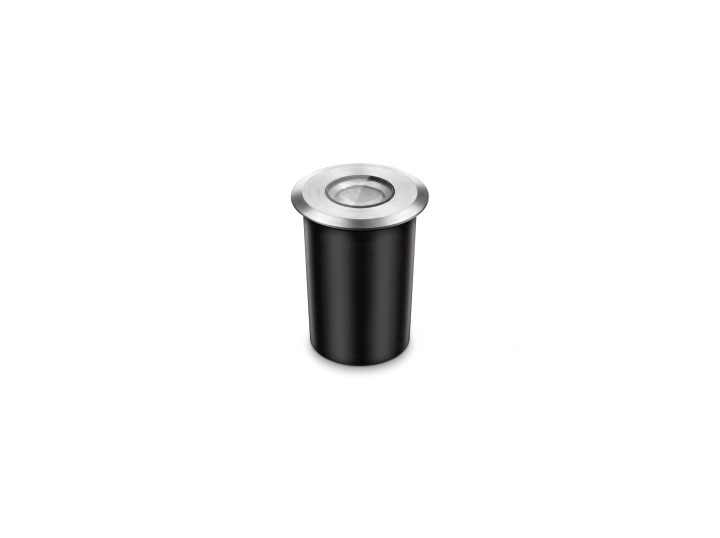

Dotty Floor Up light is waterproof IP68 stainless steel 316L in-ground recessed luminaire ?xed directional with round cover plate and clear glass. In-ground luminary to be place inside or outside. Extremely robust construction, this spot can use an LED with a ?x or adjustable lamp holder. This quality luminary is manufactured by machining process. The body is in anodized aluminum and the cover plate is stainless steel 316L.

DOTTY

Submit an enquiry
Description:
HOUSING
Body in Aluminum Die-Casting, 316 grade stainless steel cover in 4mm thickness
DIFFUSER
Tempered Clear/Frosted Glass in 8mm Thickness, Silicon Rubber Gasket, Recessed Plastic Box
COLOR AVAILABLE Stainless Steel
LIFESPAN
 50,000 Hours (L90 B10)
REFLECTOR Special optics: PMMA
VOLTAGE AC220~240V/DC24V 50-60 HZ
WORKING TEMPERATURE -20C° ~ +60C°
UGR <16~21
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Accessories Polycarbonate Recessed Box
Technical Specifications:

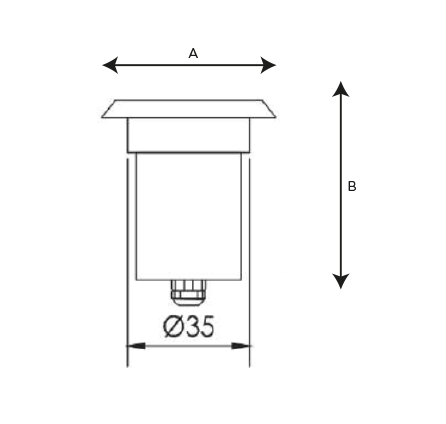

Item Code PowerLamp CCTLumen DIMENSIONS
UPXR657501.0
 1.0W LED 3000K, 4000K, 6000K 120 lm A50 X B52 mm
UPXR657501.5 1.5W LED 3000K, 4000K, 6000K 180 lm A50 X B52 mm
UPXR657503 03W LED 3000K, 4000K, 6000K 360 lm A50 X B52 mm
