DOT

FEATURES

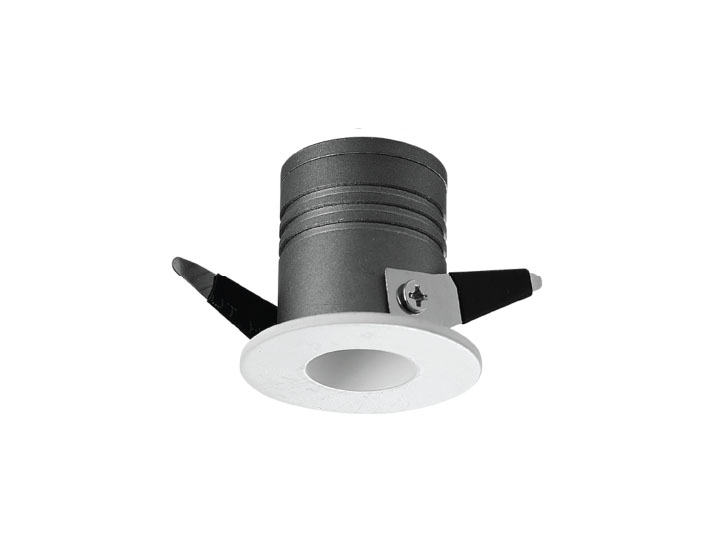

Dot LED Spotlight is a mini and exquisite lamp with high light transmittance PMMA lens. It offers a very little size in many design styles, without forgetting about the functionality: all the range is characterized by the use high quality LED technology, so the result is a choice of accent light suitable for false ceiling, kitchen cabinet and not only. The possible applications are a multitude. The mini spotlights are all environmental friendly and very useful in a matter of energy and economical saving. The light result is bright, uniform and comfortable. Housing made by die cast aluminum powder coated with choice of RAL colors reflector with pure die cast aluminum diffuser tempered glass.

Description:
HOUSINGDie-cast Aluminum
DIFFUSER Tempered Frosted Glass or Clear Tempered Glass
COLOR AVAILABLE White
LIFESPAN
>50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
Aluminum reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE
-40C° ~ +50C°
UGR <16
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

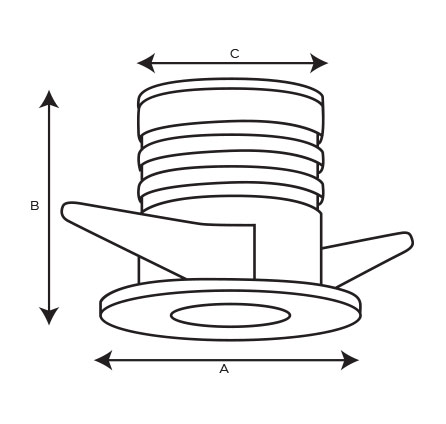

Item Code PowerLamp CCTLumen DIMENSIONS
SXR181502 02W LED 3000K, 4000K, 6000K 240lm A40 X B36 X C35 mm
SXR181503
03W LED 3000K, 4000K, 6000K 360lm A40 X B36 X C35 mm
SXR181505
05W LED 3000K, 4000K, 6000K 600lm A50 X B44 X C45 mm
