| Description: | |
| HOUSING | Aluminum Alloy, Anodized.
|
| DIFFUSER | Polymethyl Methacrylate Optical Lens |
| COLOR AVAILABLE | Aluminum Color, Black & White
|
| LIFESPAN |
>50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50) |
| REFLECTOR | Aluminum Reflector |
| VOLTAGE | AC200~240V |
| WORKING TEMPERATURE | -40C° ~ +50C° |
| UGR | <22 |
| LUMINOUS EFFICACY (lm/W) | 125 |
| MacAdam | <3 |
| Power Factor | >0.95 |
| Lens | PMMA cover optional. |
| Technical Specifications: | |||||

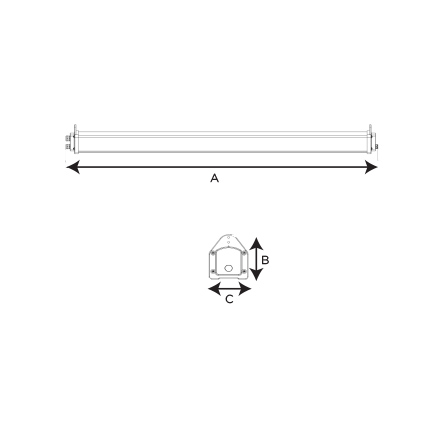

| Item Code | Power | Lamp | CCT | Lumen | DIMENSIONS |
|---|---|---|---|---|---|
| PDXR2718 - WH | 18W | LED | 3000K, 4000K, 6000K | 2250lm | A605 X B105 X C34 mm |
| PDXR2725 - WH | 25W | LED | 3000K, 4000K, 6000K | 3125lm | A905 X B105 X C34 mm |
| PDXR2740 - WH | 40W | LED | 3000K, 4000K, 6000K | 5000lm | A1205 X B105 X C34 mm |
| PDXR2750 - WH | 50W | LED | 3000K, 4000K, 6000K | 6250lm | A1505 X B105 X C34 mm |
| PDXR2760 - WH | 60W | LED | 3000K, 4000K, 6000K | 7500lm | A1505 X B105 X C34 mm |
