Ava LED Spot light

Submit an enquiry

FEATURES

Ava LED Spot light is recessed ceiling spotlight, with an essential and complementary shape adopts super slim and compact design, perfectly suitable for the narrow ceiling installation. IP65 rating front cover design, suitable for damp environment. T-shape heat sink greatly increases the radiation area and improves cooling efficiency. The fitting could be radjust rom 0-30 degree in horizontal direction, which can expand the illumination area.

AVA

Submit an enquiry
Description:
HOUSING Luminaire Body of Die-cast Aluminum, White, Powder-coated and Heat Sink Form a Compact Unit
DIFFUSER Clear Tempered Glass
COLOR AVAILABLE White/Gold/Silver
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE
 -40C° ~ +50C°
UGR <19
LUMINOUS EFFICACY (lm/W) 100
MacAdam <3
Technical Specifications:

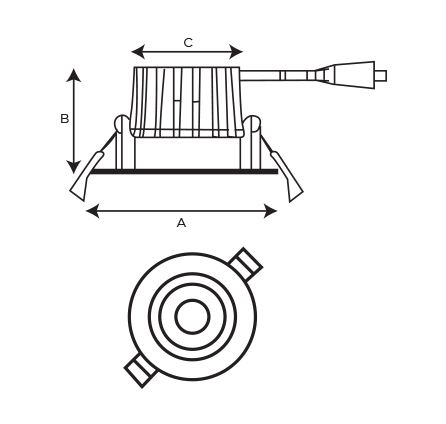

Item Code PowerLamp CCTLumen Dimensions
SXR183505 05W LED 2700K, 3000K, 4000K, 5000K
 500lm A90 X B30 X C72 mm
SXR183508 08W LED 2700K, 3000K, 4000K, 5000K
 800lm A90 X B30 X C72mm
SXR183510 10W LED 2700K, 3000K, 4000K, 5000K
 1000lm A90 X B39.3 X C75mm
SXR183513 13W LED 2700K, 3000K, 4000K, 5000K
 1300lm A90 X B39.3 X C75mm
