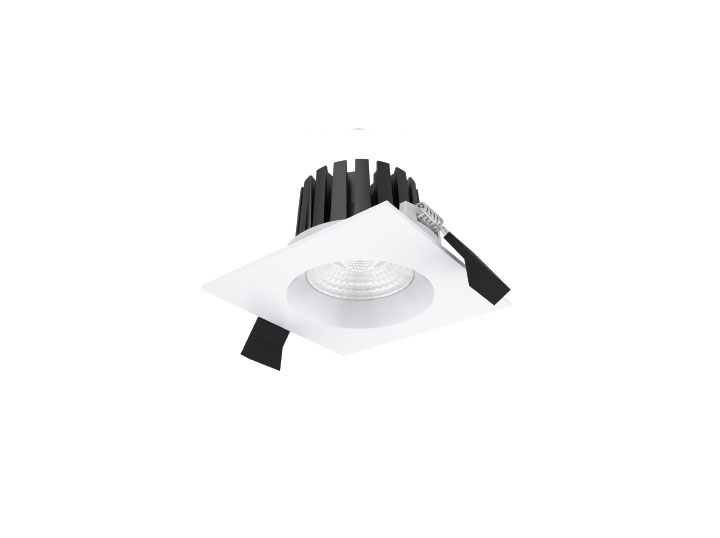

Arow LED recessed downlight adopts super slim and compact design, perfectly suitable for the narrow ceiling installation.
IP54/IP65 rating front cover design, suitable for damp environment. Traditional diamond plaited surface lens design ensures the high light transmittance and uniform lighting output. T-shape heat sink greatly increases the radiation area and improves cooling efficiency.

AROW

Submit an enquiry
Description:
HOUSING
Luminaire Body of Die-cast Aluminum, White, Powder-coated and Heat Sink Form a Compact Unit
DIFFUSERClear Tempered Glass
COLOR AVAILABLE White, Black, Gold and Silver
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE
 -40C° ~ +50C°
UGR <19
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

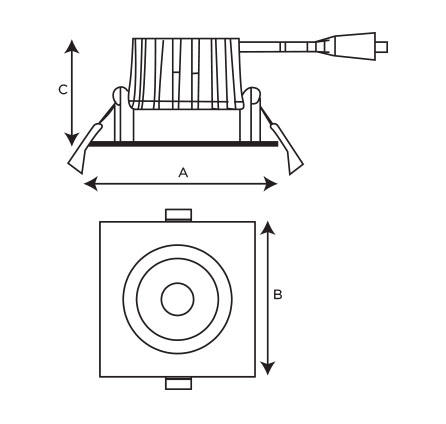

Item Code PowerLamp CCTLumen DIMENSIONS
SXR186605 05W LED 3000K, 4000K, 6000K 1200lm A80 X B80 X C40 mm
SXR18660808W LED 3000K, 4000K, 6000K 2400lm A80 X B80 X C40 mm
SXR186610 10W LED 3000K, 4000K, 6000K 3600lm A90 X B90 X C40 mm
SXR186613 13W LED 3000K, 4000K, 6000K 3600lm A110 X B110 X C64 mm
SXR186615 15W LED 3000K, 4000K, 6000K 3600lm A110 X B110 X C64 mm
