Alex LED Down Light

Submit an enquiry

FEATURES

Alex LED Down Light for indoor or outdoor mounting, powerful lumen output via the powerful recessed LED chip. Driver surface-mounted with quick junction box with quick clips for additional looping. Made of die-cast powder-coated aluminium, glass diffuser. Alex downlight is unique designed with reflector and COB high power LED chip. ADC12 aluminum housing provides excellent thermal dissipation. LED Module design could save SKU and offer an easy module replacement. It supports a great compatibility for non- dim, triac dim, 0-10V, DALI dim with worldwide dimmers.

ALEX

Submit an enquiry
Description:
HOUSING Luminaire Body Die-cast Aluminum, White Powder-coated
DIFFUSER Tempered Frosted or Clear Tempered Glass
COLOR AVAILABLE White
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE
 -40C° ~ +50C°
UGR <22
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

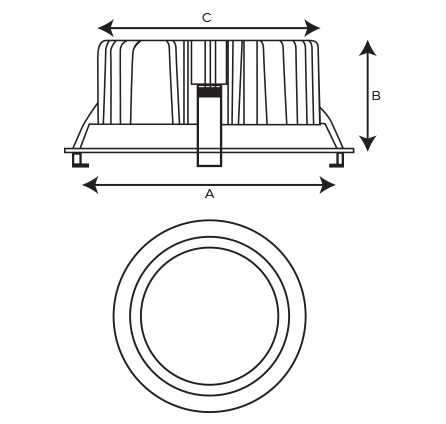

Item Code PowerLamp CCTLumen Dimensions
DXR179510 10W LED 3000K, 4000K, 6000K 1200m A110 X B53 X C90 mm
DXR179513 13W LED 3000K, 4000K, 6000K 1560lm A110 X B53 X C90 mm
DXR179518 18W LED 3000K, 4000K, 6000K 2160lm A145 X B65 X C120 mm
DXR179525 25W LED 3000K, 4000K, 6000K 3000lm A190 X B75 X C160 mm
DXR179535 35W LED 3000K, 4000K, 6000K 4200lm A190 X B75 X C160 mm
DXR179545 45W LED 3000K, 4000K, 6000K 5400lm A225 X B87 X C200 mm
